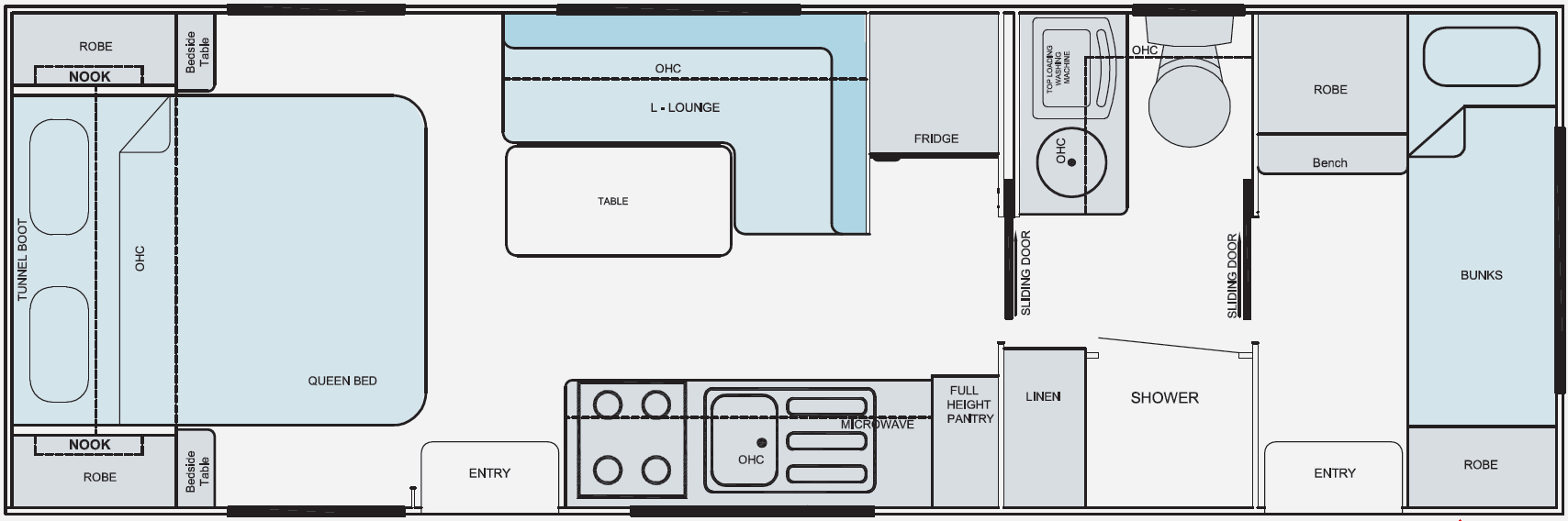

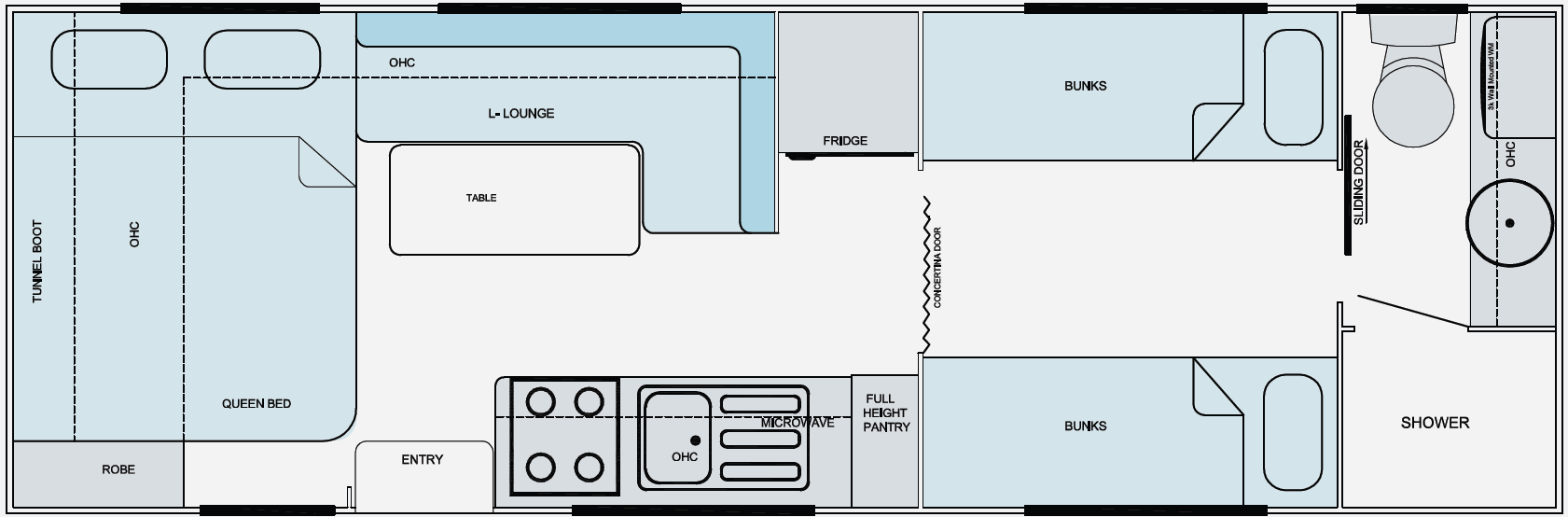

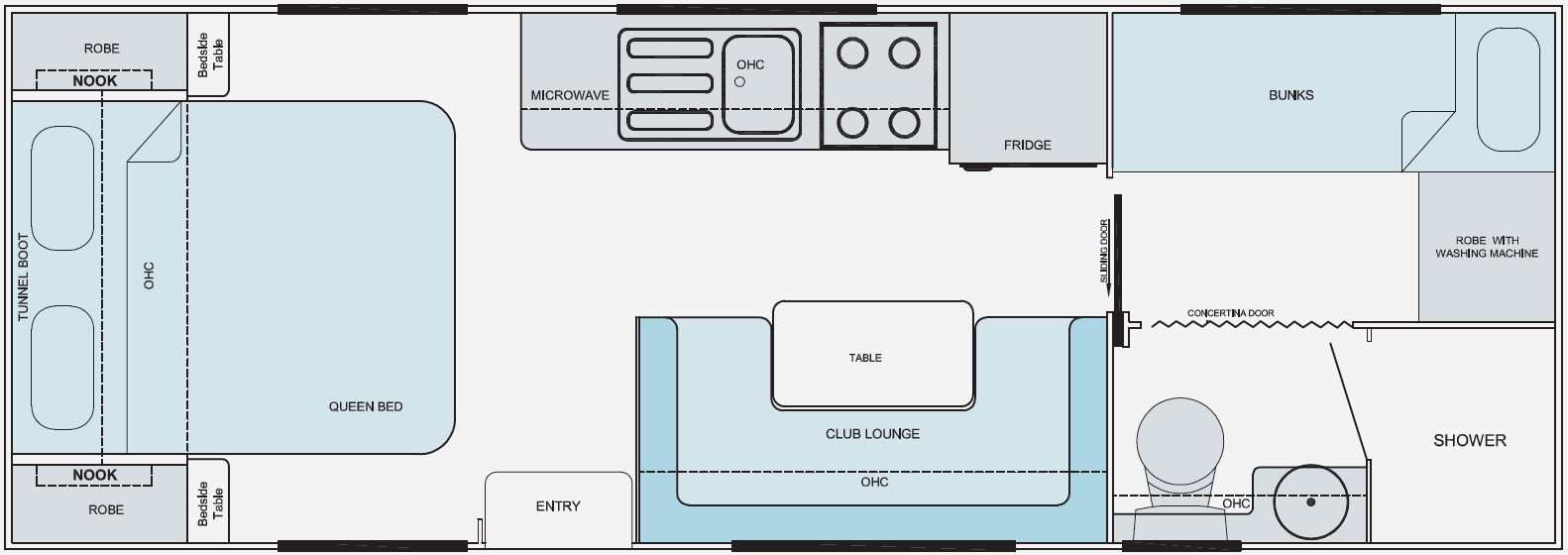

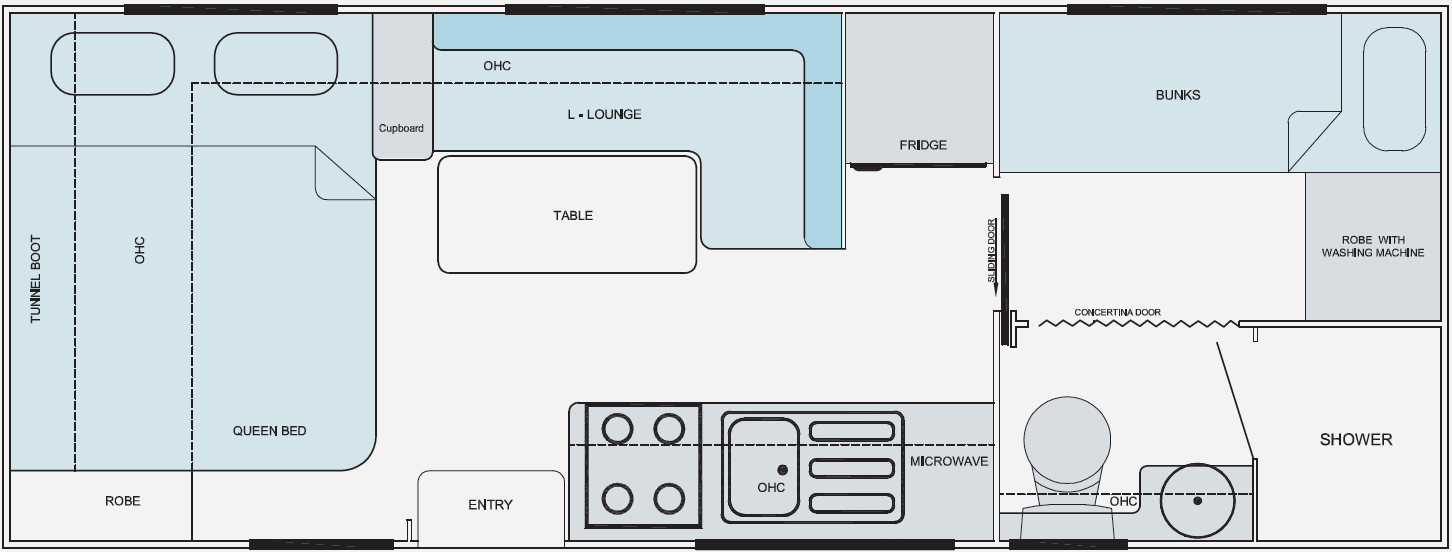

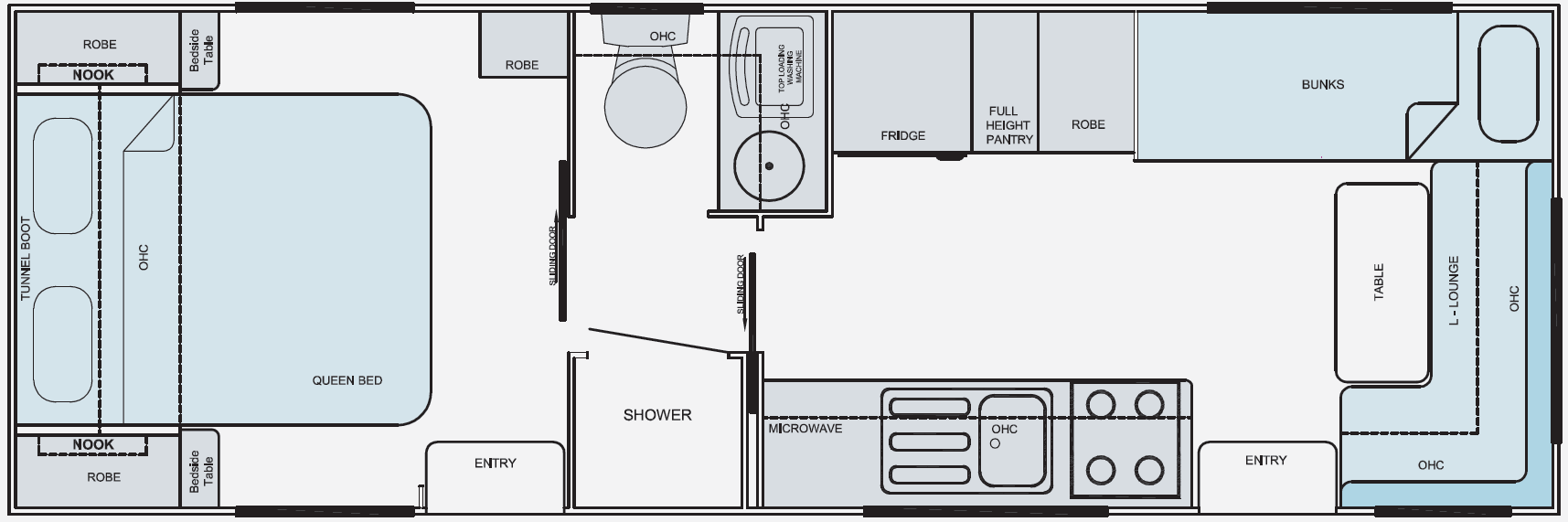

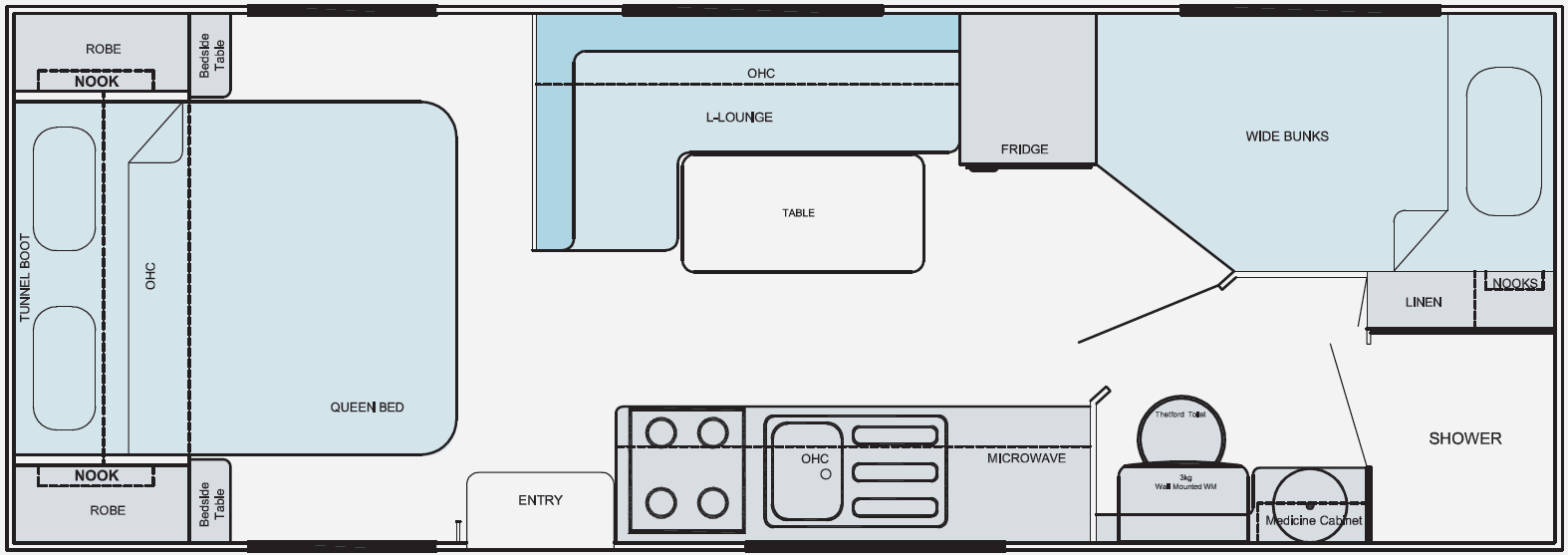

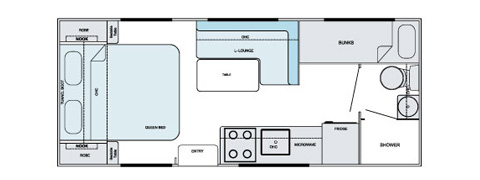

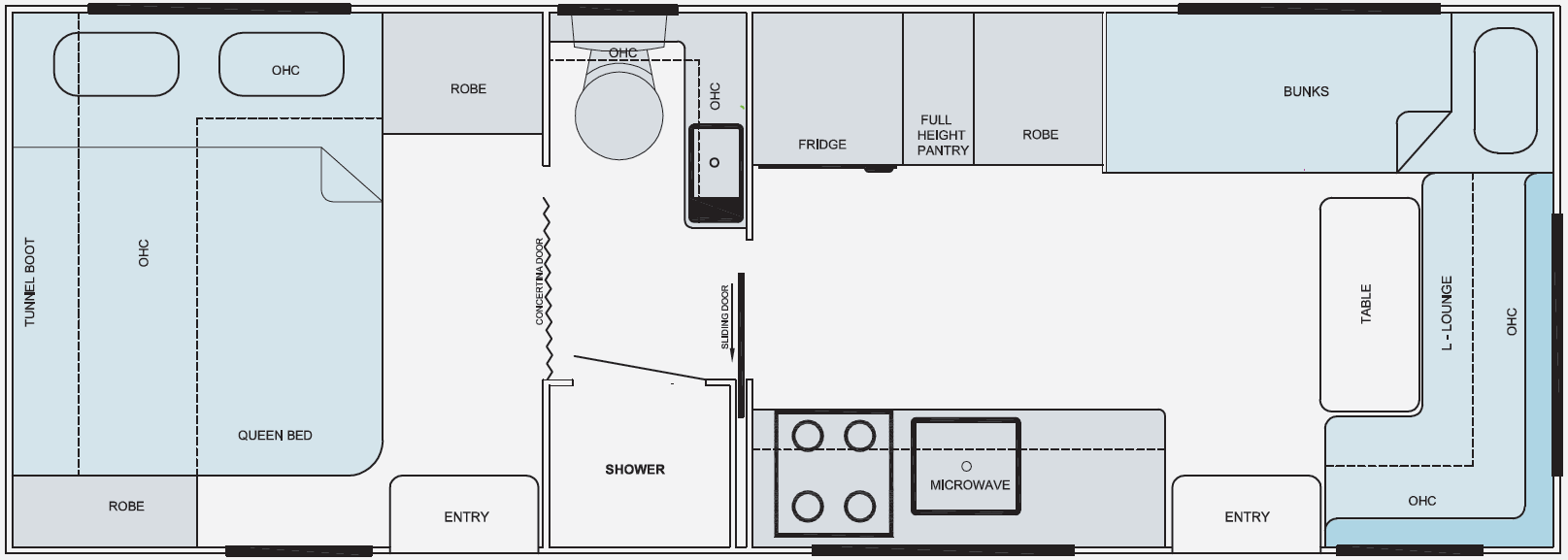

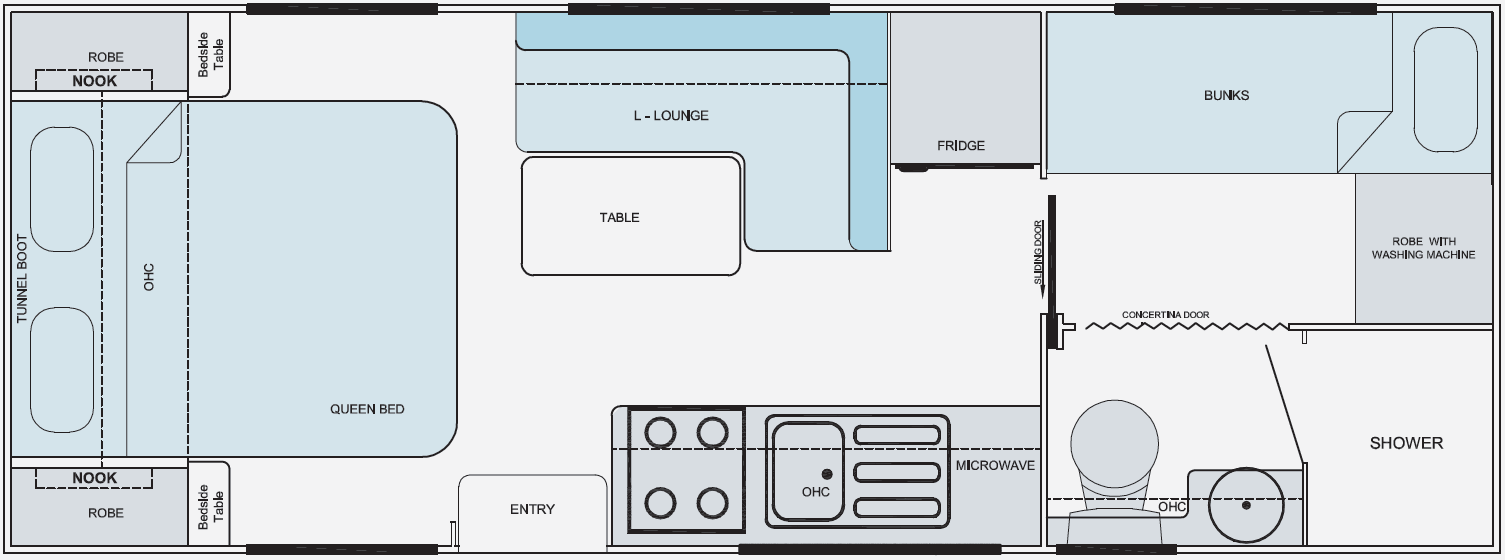

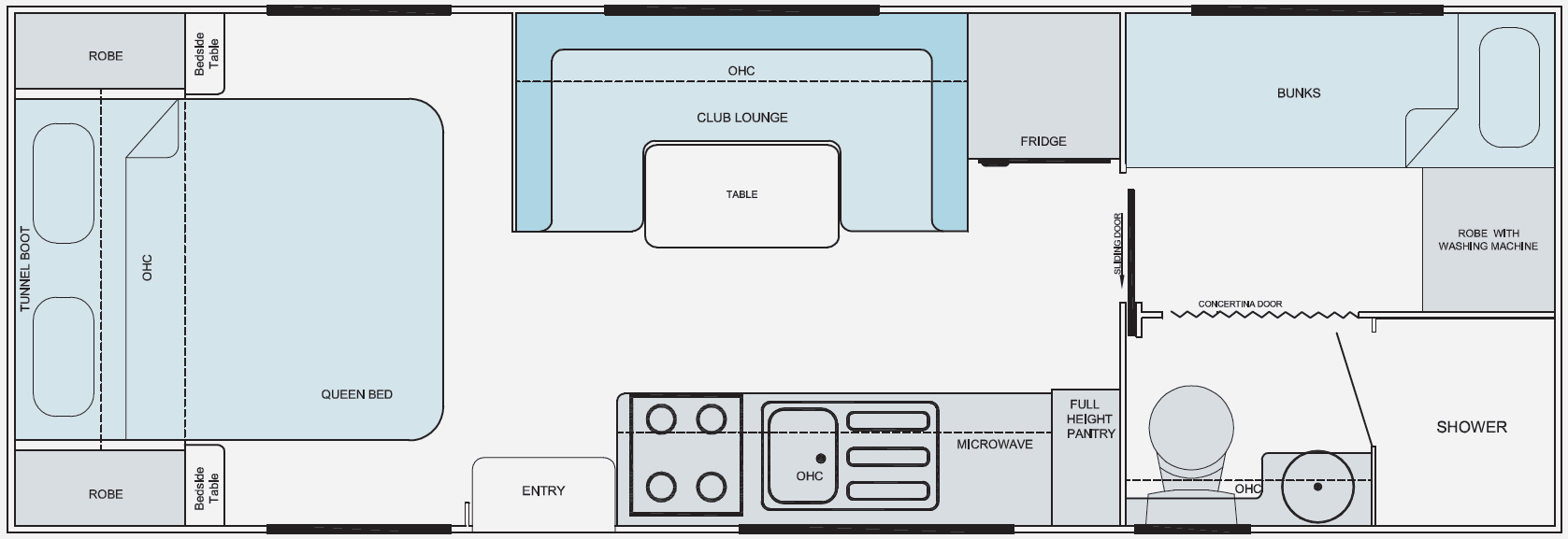

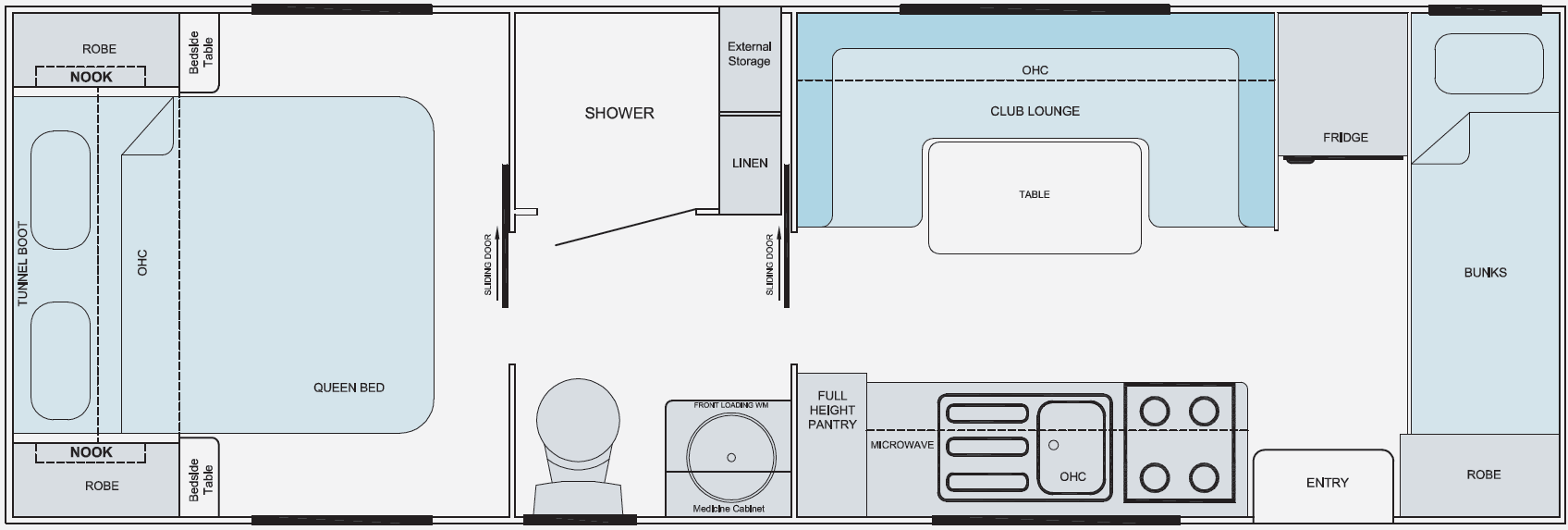

Floorplans

Family Models
XT Series (Slide-Out Models)

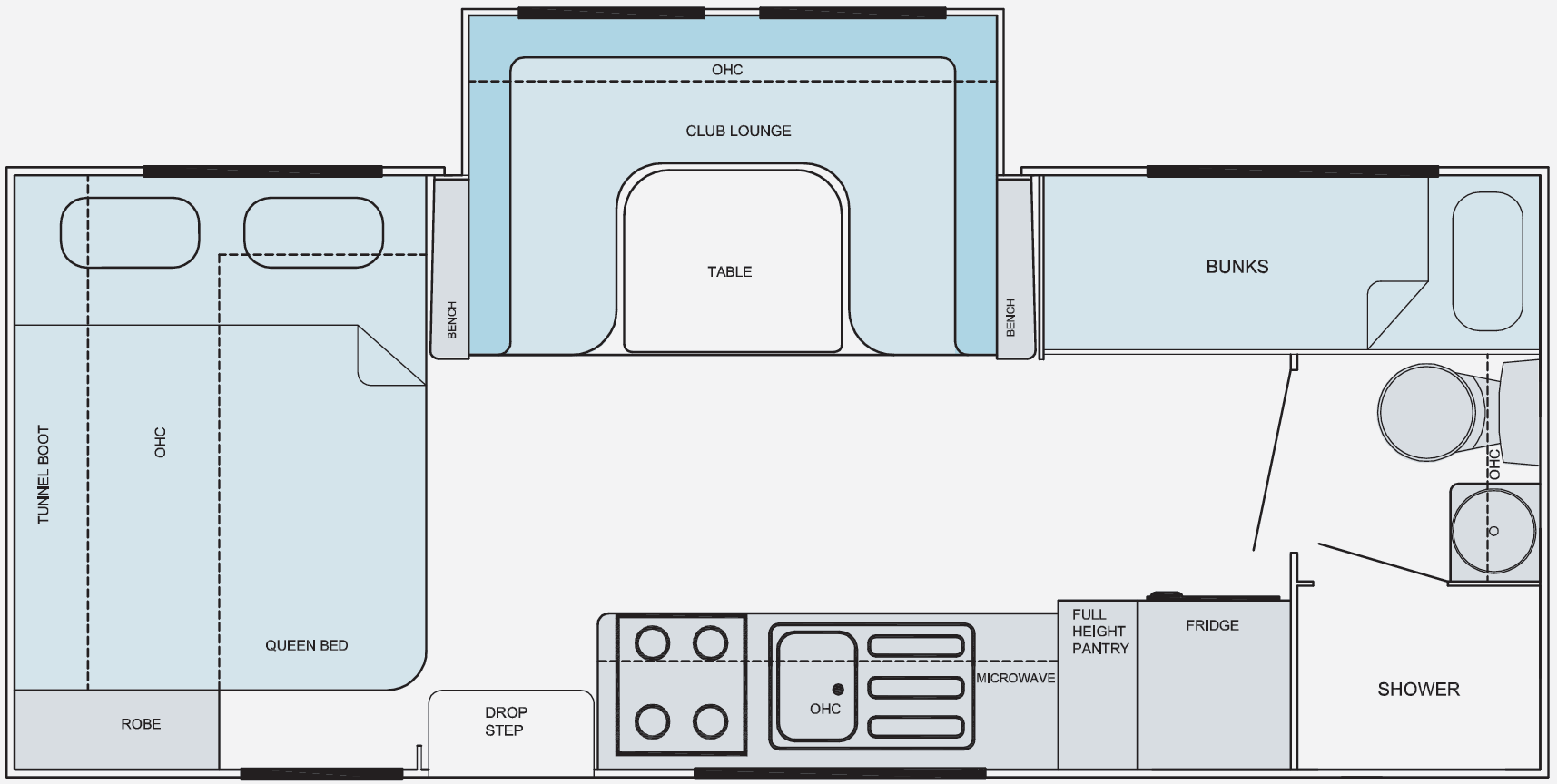

COASTLINE XT 19ft

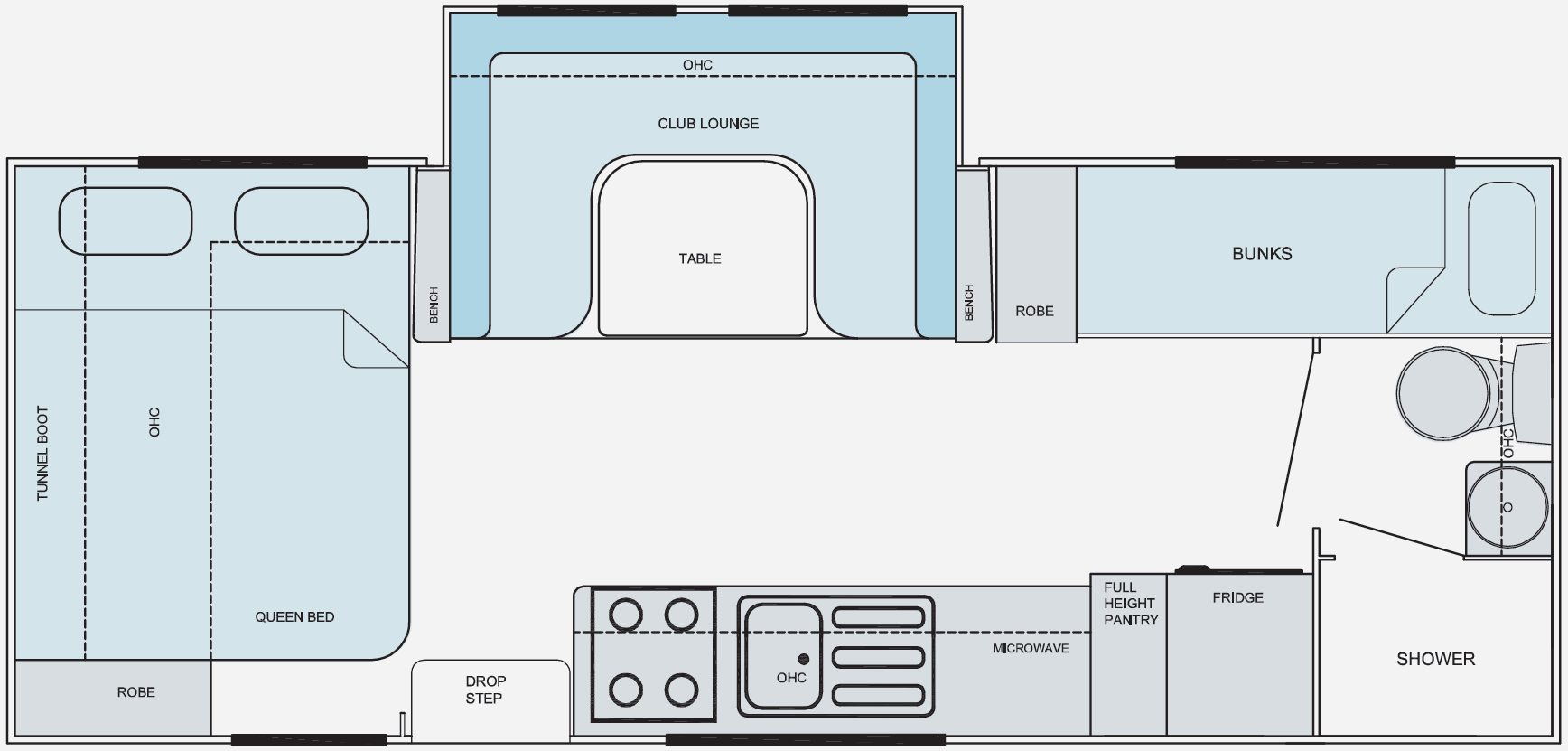

COASTLINE XT 20ft

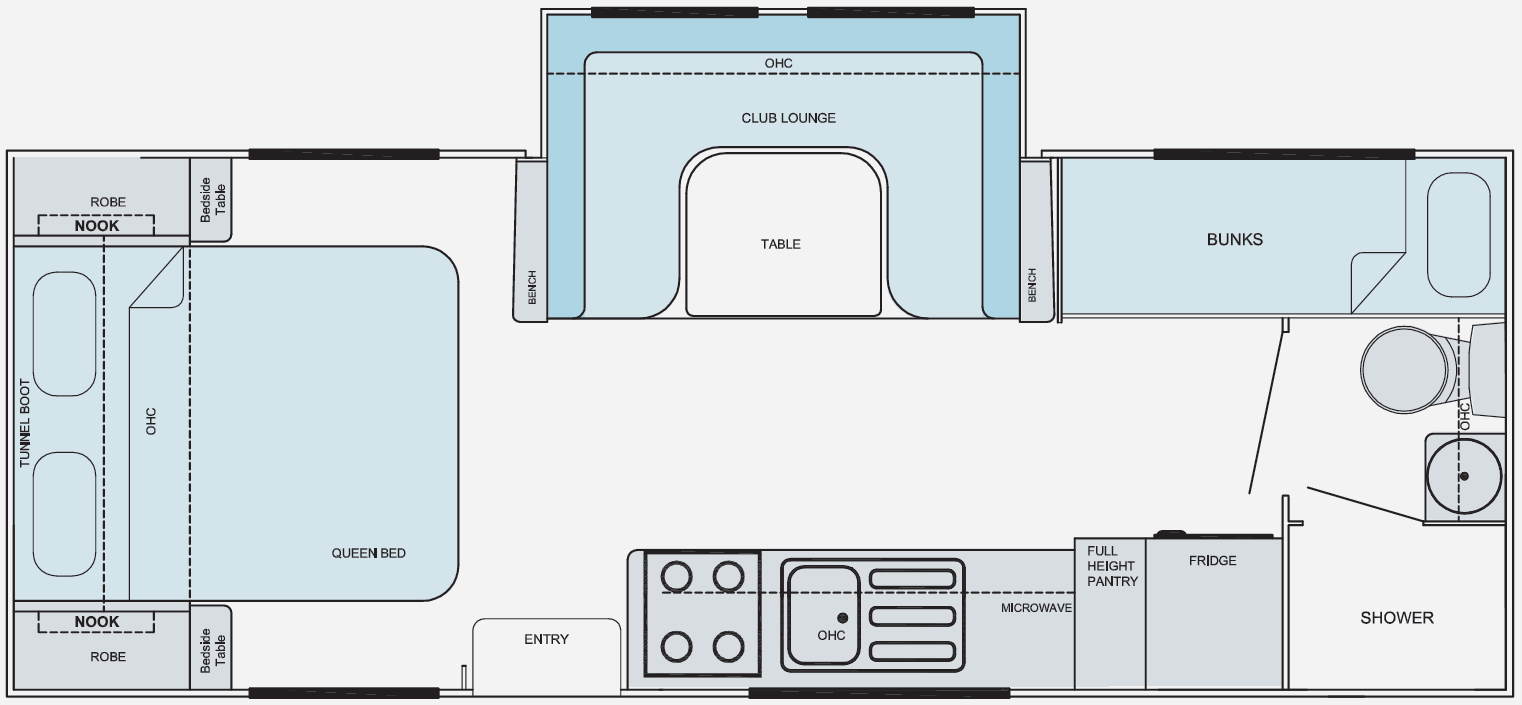

COASTLINE XT 20.8ft

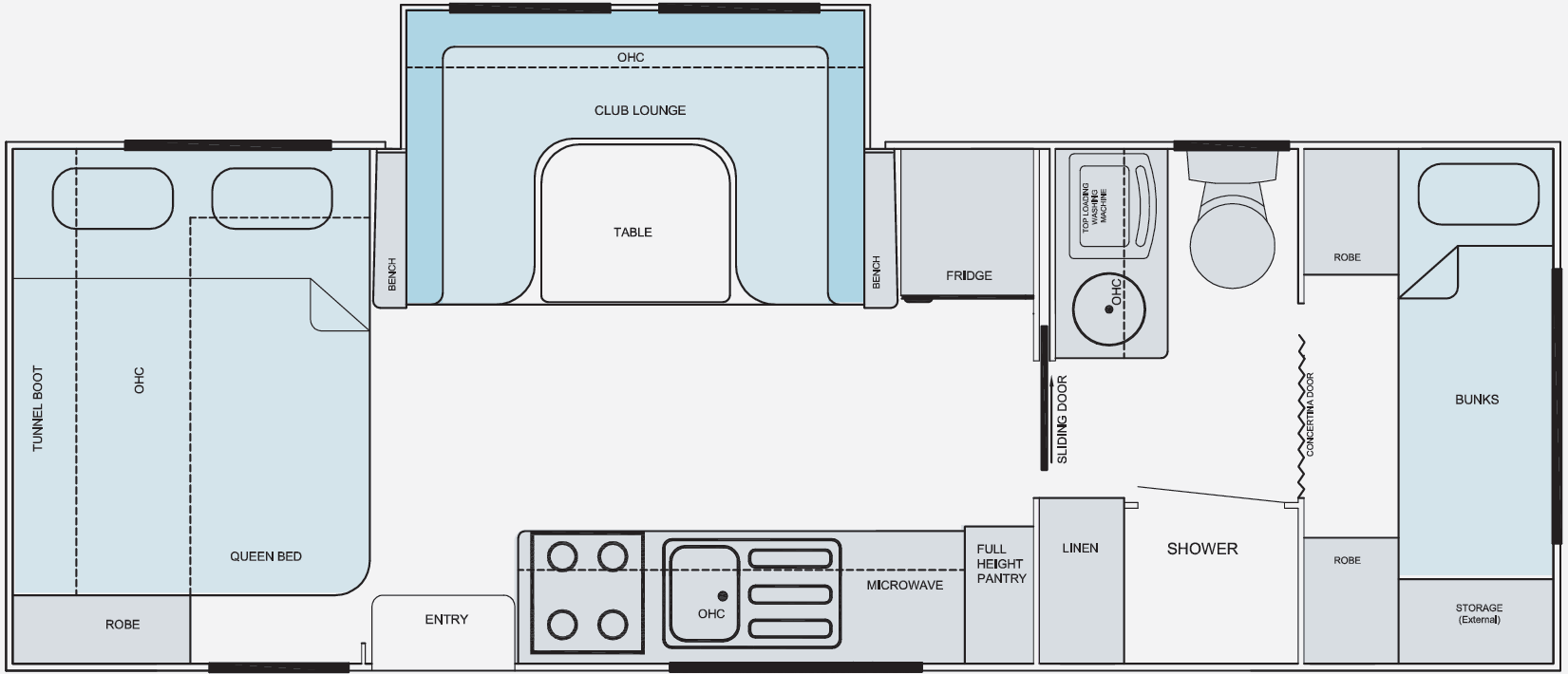

COASTLINE XT 22ft
COASTLINE XT 22.6ft

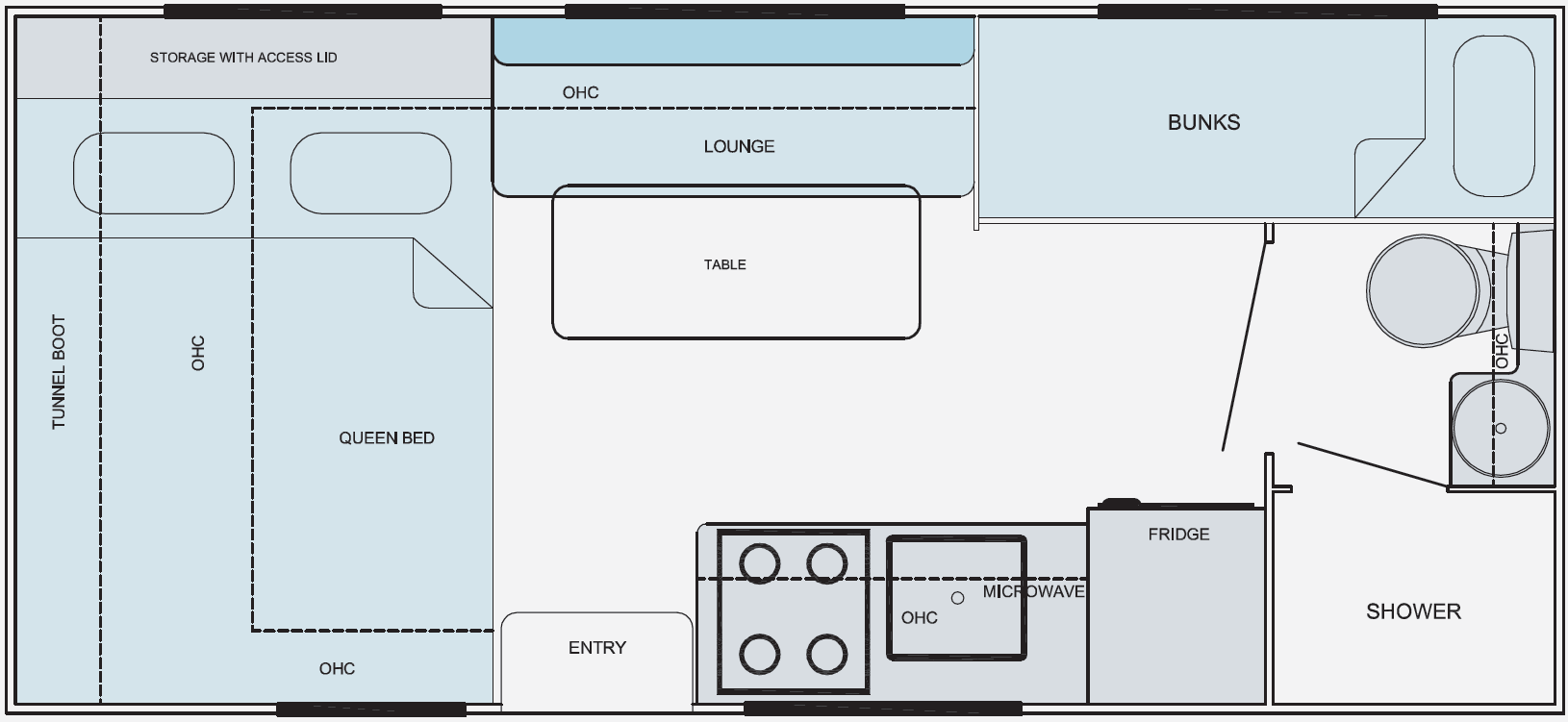

16.6ft Family (Single Axle)

COASTLINE XT 19ft

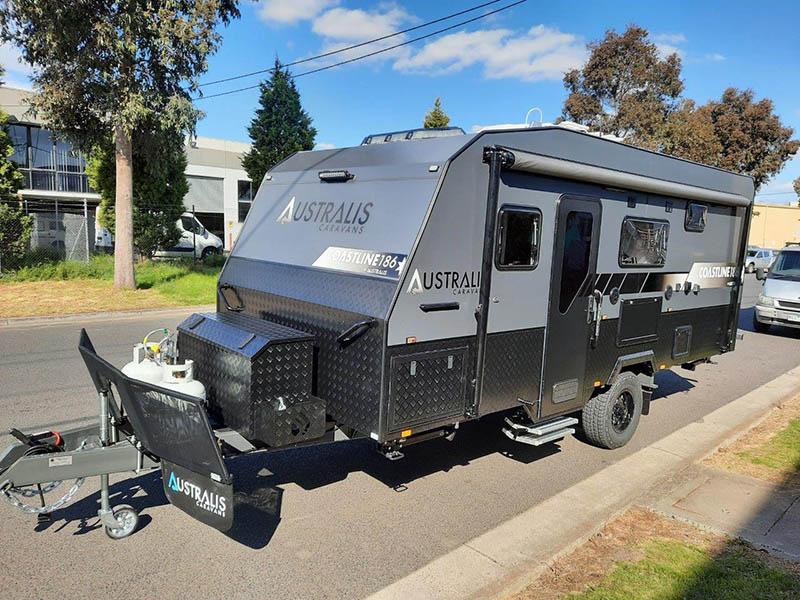

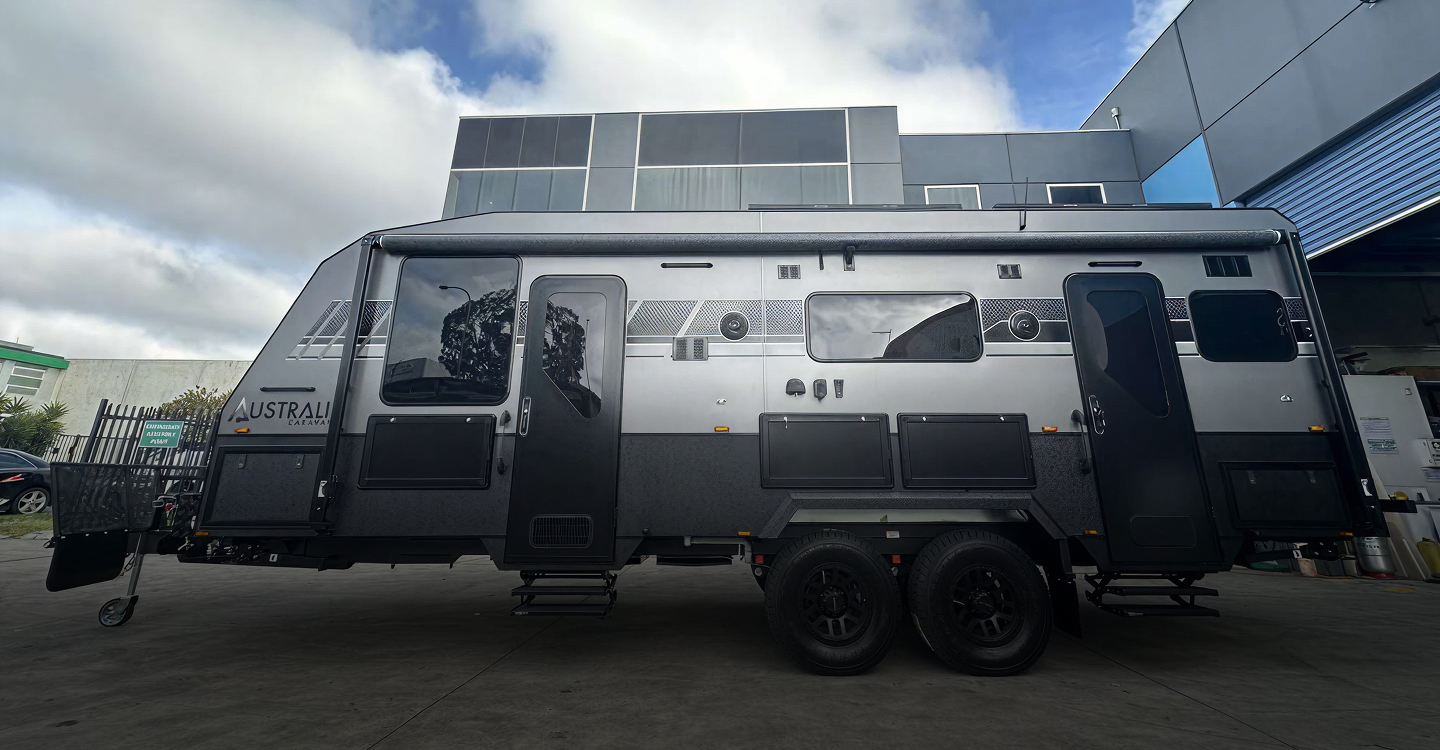

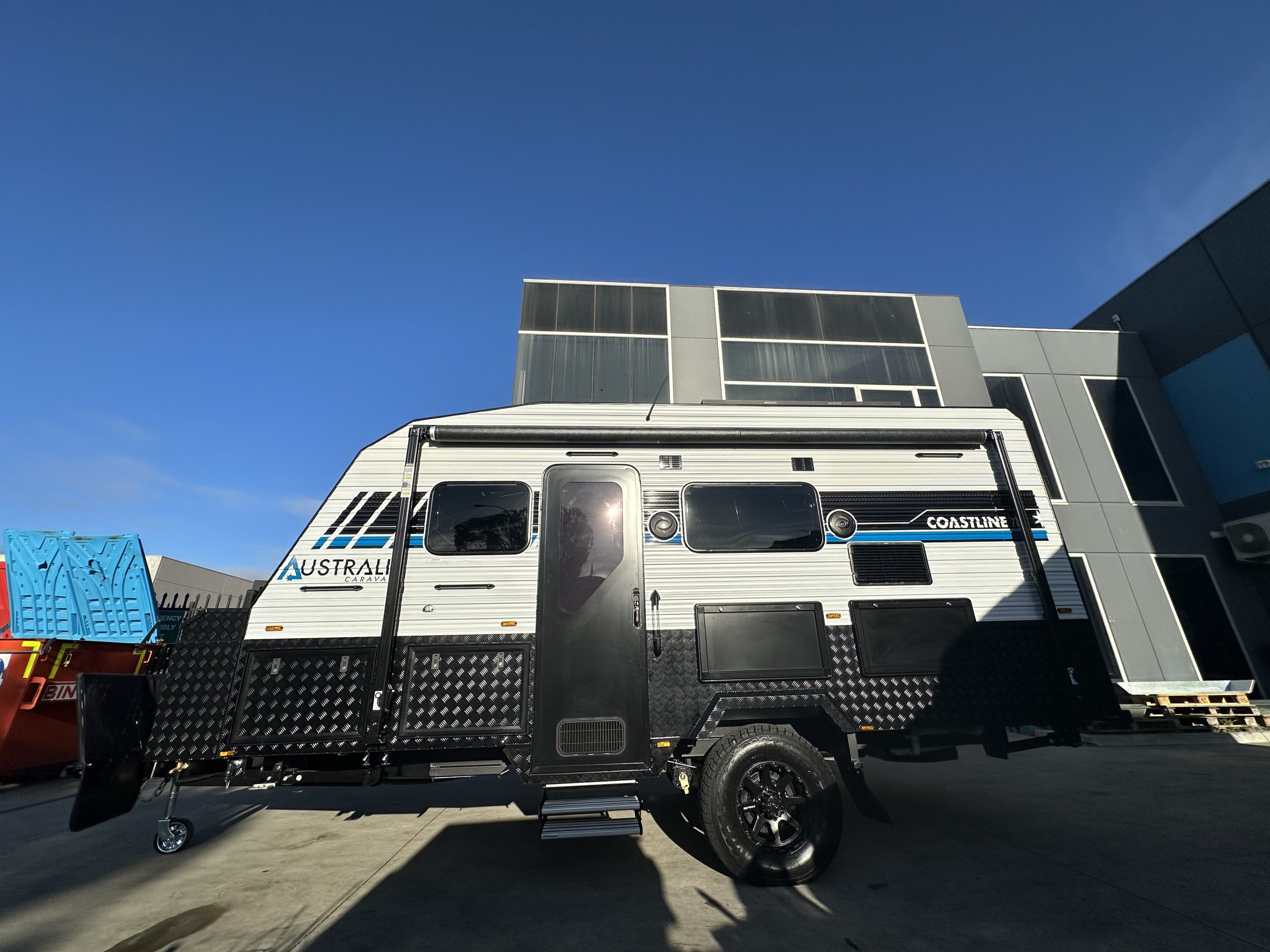

Australis Coastline

The Premium Family Experience
The Australis Coastline delivers exceptional comfort for family adventures. With its innovative living space, thoughtful layout, and comprehensive features, this premium caravan range redefines family travel.

Thoughtful Design Elements
The Coastline series showcases the Australis commitment to quality with concealed plumbing connections, precisely aligned fixtures, and clever space utilisation.

Australis Caravans is driven to design and build innovative, modern caravans with the right combination of features, smart comfort and safety. The Coastline series exemplifies Australis’s design philosophy – combining smart, family-friendly features with premium comfort and exceptional build quality for memorable Australian adventures.

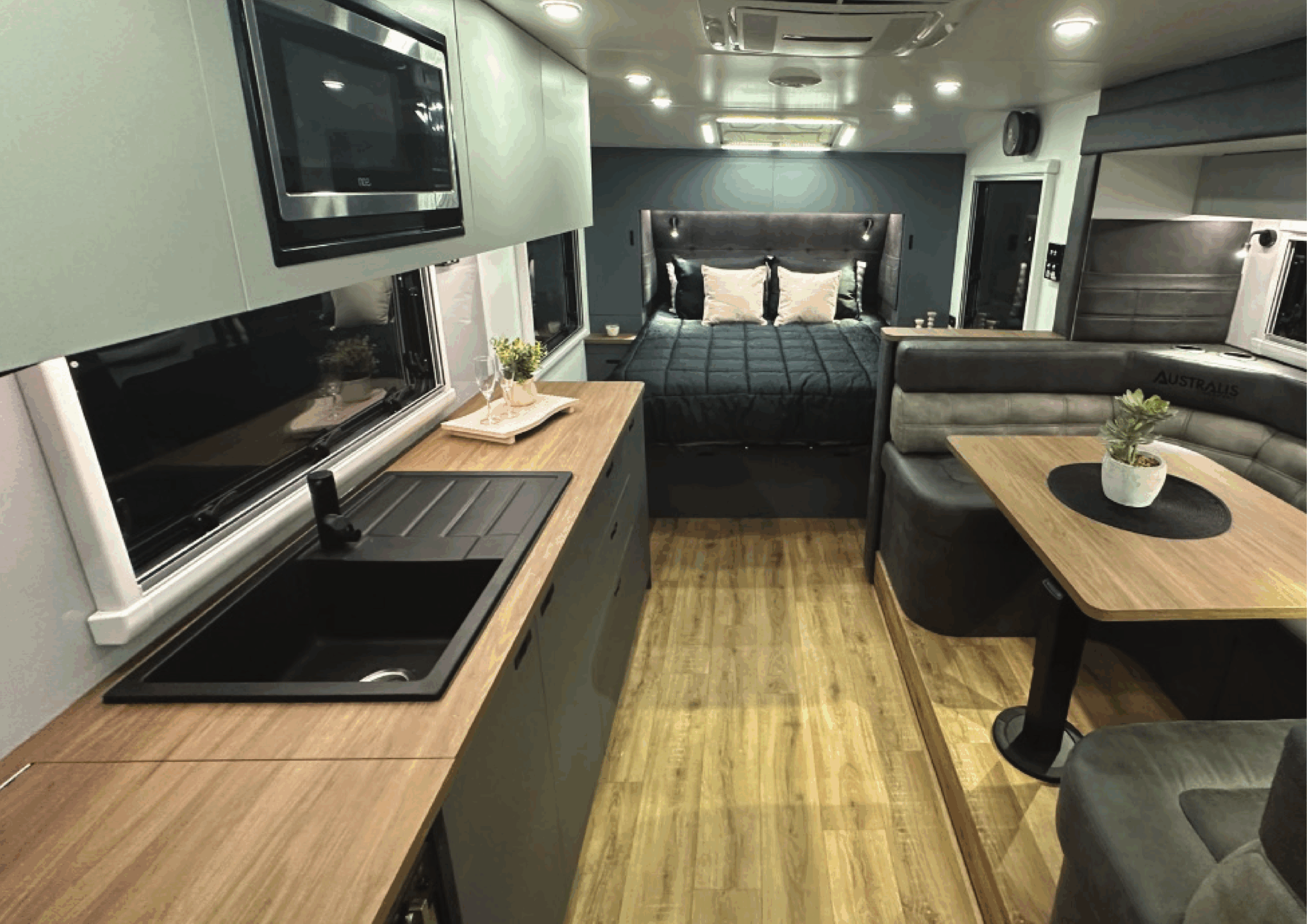

Signature Features

Family-Optimised Layout: Spacious rear bunk configuration with individual reading lights and optional 12V fans for personalized comfort.

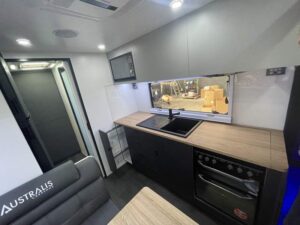

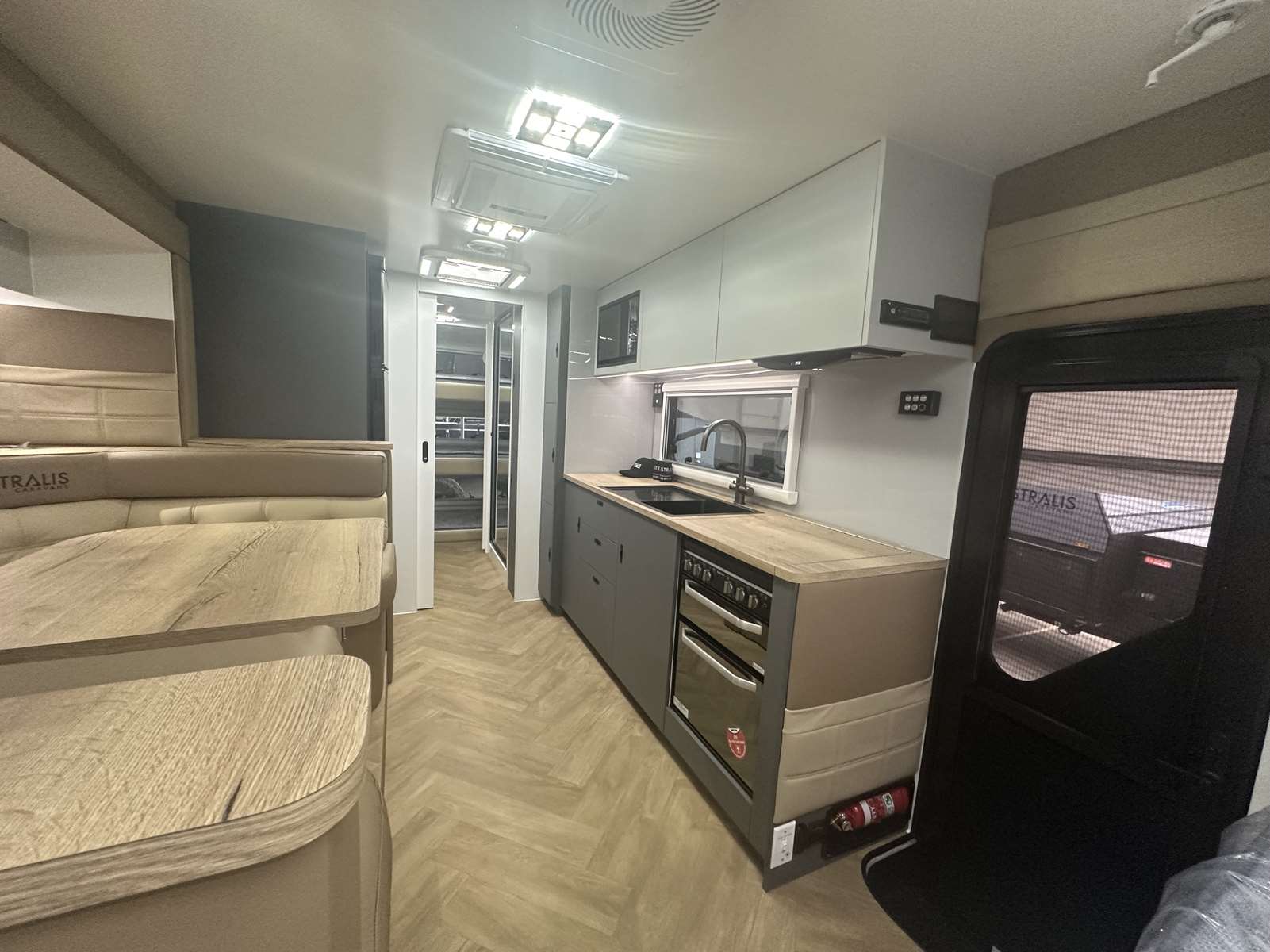

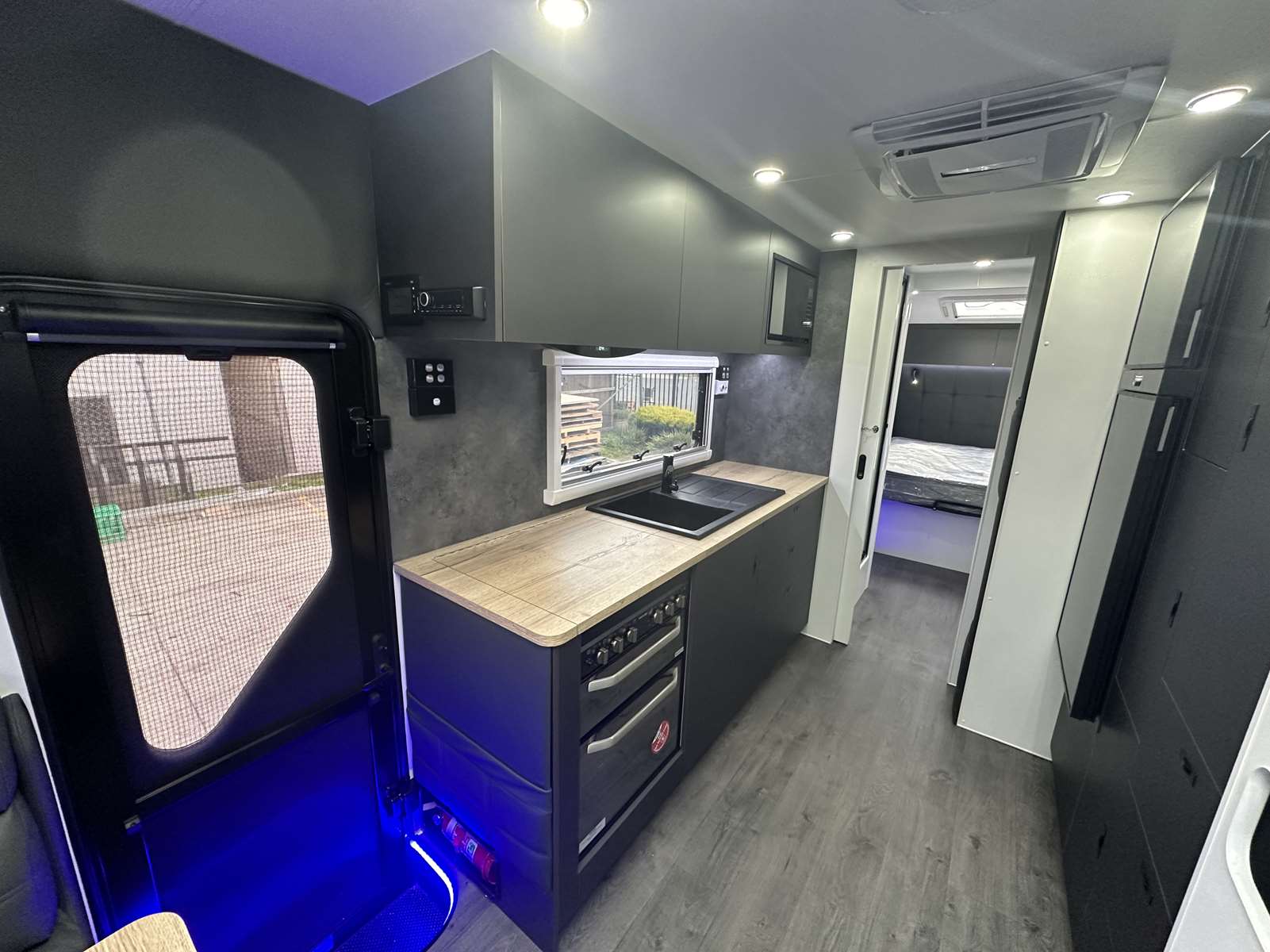

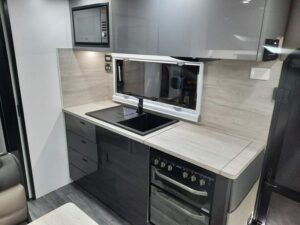

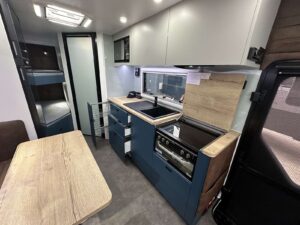

Designer Kitchen: Black sink with matching tapware, dedicated filtered drinking water, and recessed cooktop with griller and fanforced oven.

Intelligent Storage Solutions: Sectioned full-height pantry and strategically placed wardrobes maximize usable space.

Comprehensive Entertainment: Smart TV and Bluetooth stereo system with internal and external speakers.

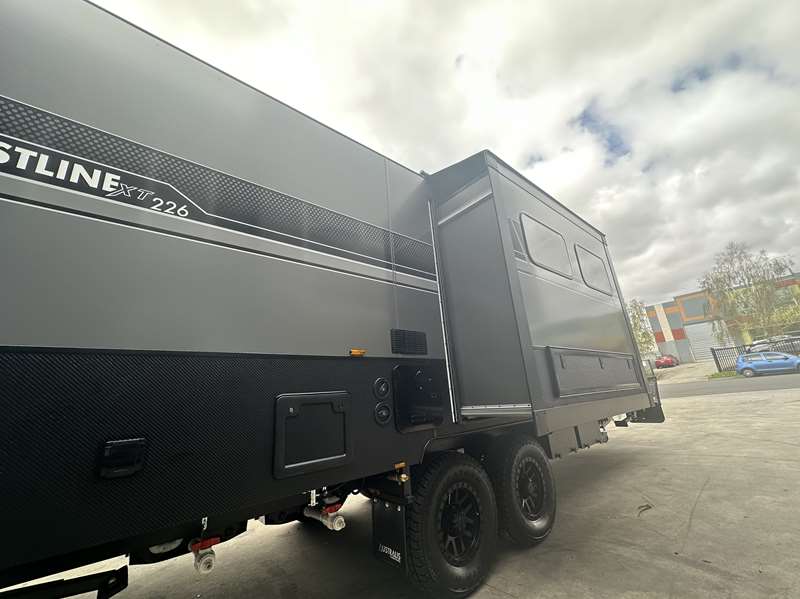

XT Model’s Exclusive ‘Gold Class’ slide out Lounge: Elevated club lounge with built-in cupholders and reading lights transforms at the push of a button.

Off Grid Capability

Advanced Power System: Battery bank with substantial rooftop solar array

Optional High-Capacity Inverter: Powers all outlets for genuine off-grid comfort

Water Management: Multiple freshwater tanks with grey water storage for extended stays

Outdoor Living: Slide-out BBQ tray

Extended Storage: Practical A-frame toolbox with dual-side slide-outs for portable fridge and generator options

Specifications

Internal Details

Bed: Gas Lift Island bed or East/West fixed bed (*subject to layout)
Mattress: Innerspring Pillow Top

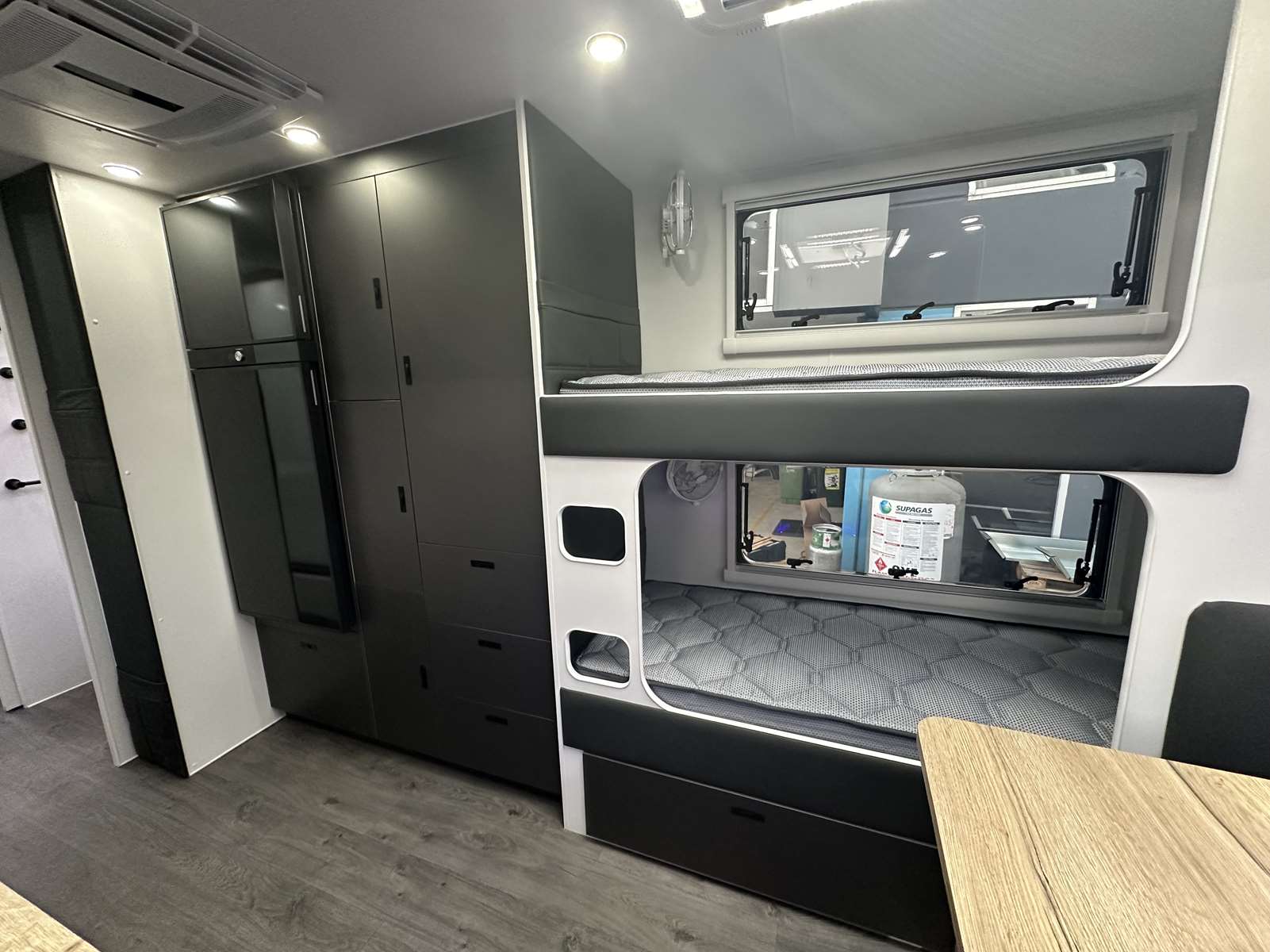

Bunk Beds: 3 x Bunks (2 x Bunks with drawers or flap under bottom bunkoptional)
Bunk Ladder: Built In

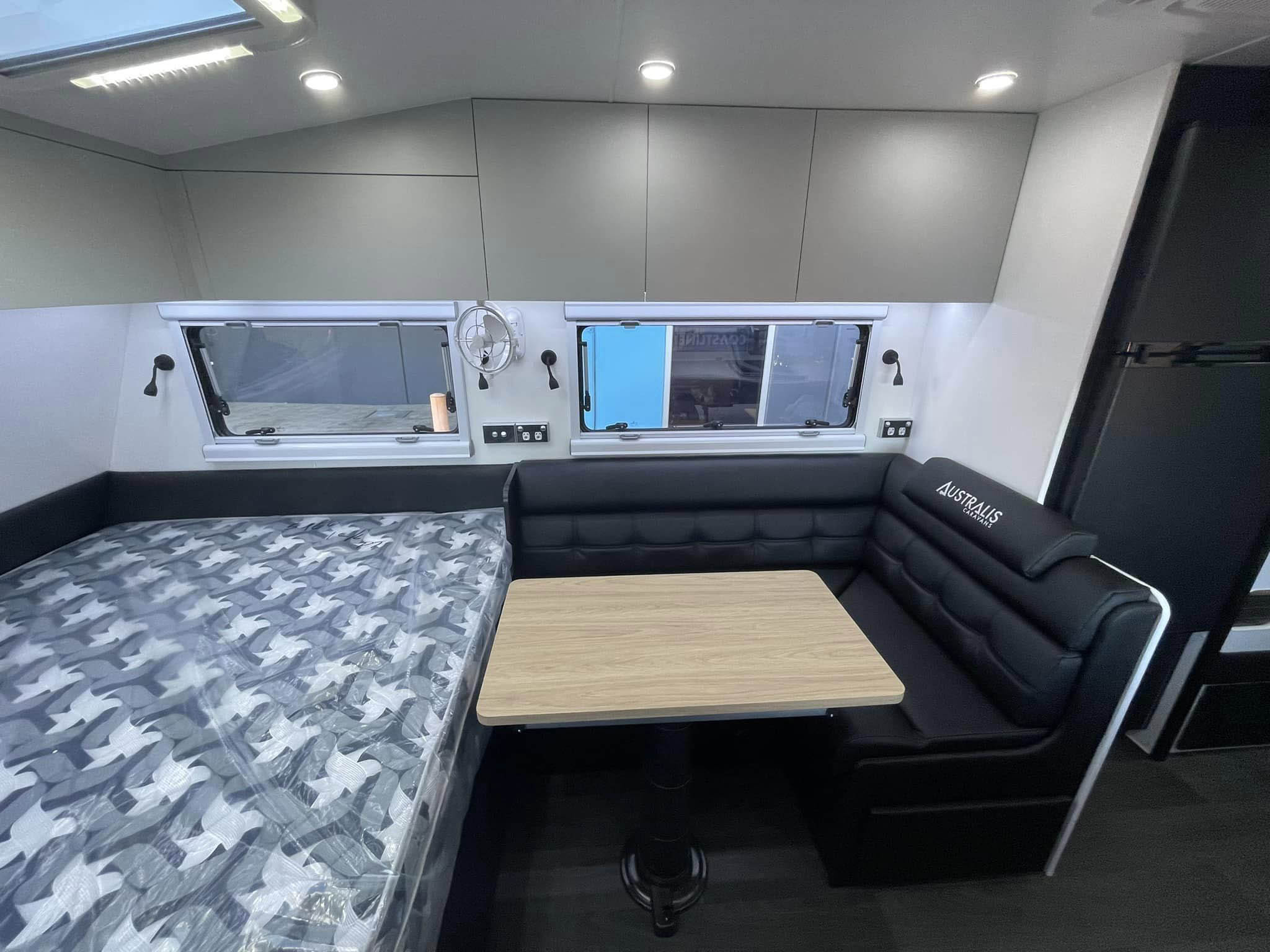

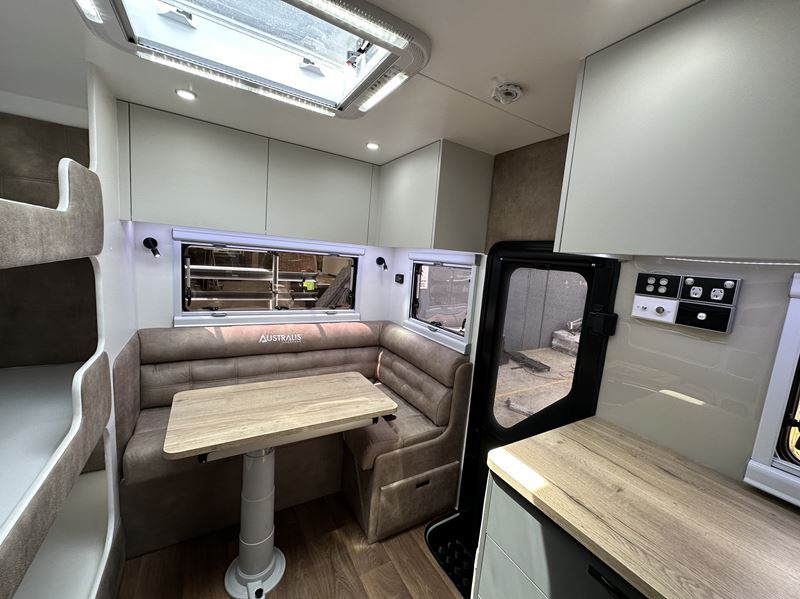

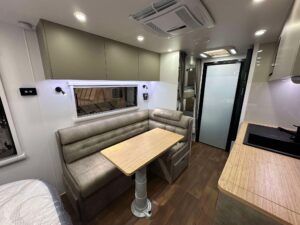

L-Shape, Café Dinette or Club Lounge seating: Faux Leather with Exposed Stitching Upholstery and Embroidery on Headrest
TIC Infill Cushion: Optional
Table: Drop down with telescopic leg (L-Shape and Club Lounge) or Bi-Fold (Café Dinette)
Windows: Double Glazed with Built-In Blind
Entry Door Screen (Tri-Lock): Dust Proof with Crim Proof Mesh
Drawers: Soft Close with lock handles
Flooring: Vinyl
Floor: One Piece Marine Grade Plywood (One Piece lightweight Honeycomb – optional)
12V LED Roof Hatch: 700mm x 500mm
12V LED Roof Hatch: 450mm x 400mm
12V LED Power Hatches (x2): 320mm x 320mm (Toilet and Shower area)
Benchtops: Square Edge Laminate
Benchtop over Stove: Square Edge Laminate
Furniture: Flat pack contemporary style CNC Cut furniture
Cupboard Handles (OHC): Hidden Catches
Cupboard Handles (Lower cupboards): Flush mounted lock catches (Matt Black)
Hinges: Concealed Hinges
Cupboard door struts: Gas Strut (60N)
Cupboard doors finish: Matt or Gloss
Splashback: Laminate; (Acrylic optional)
Door in Bunks Area: Sliding door with travel lock
Ensuite Door: Concertina Door ; (Black frame with frosted glass- optional)

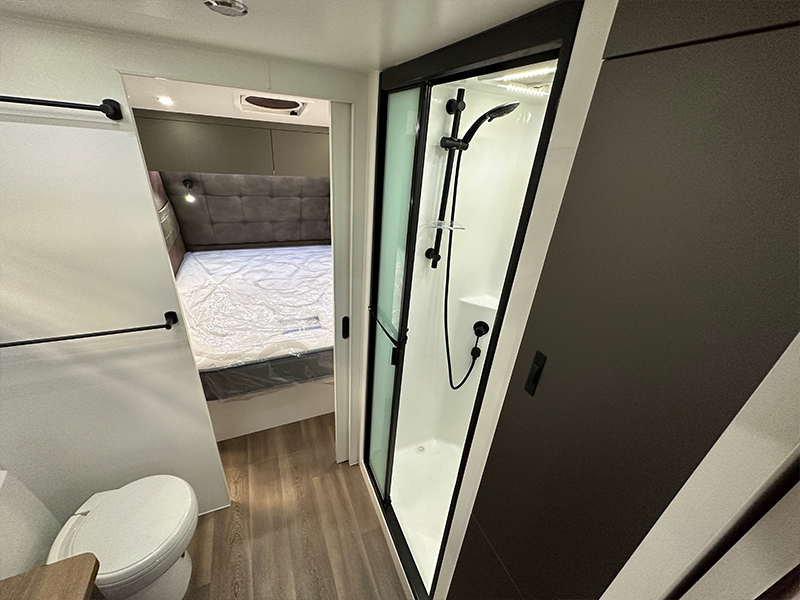

Shower Door: Black frame with frosted glass; (Mirrored glass – optional)
Upholstery: Faux Leather with exposed stitching; (Genuine leather – optional)
TV Bracket: 1 x Arm removable (Bedroom or Kitchen)
Smoke Detector: 9V Photoelectric with hush button (battery operated)
Fire extinguisher: 1kg in white or black housing
Towel and Toilet roll holder: Black

Appliance Details

Air Conditioner: Reverse cycle, low noise, slim-lined rooftop A/C
Recessed Oven: Fan Forced Full Oven ; (Mini Grill with Pot drawer under-optional)
Rangehood: Recessed with touch screen

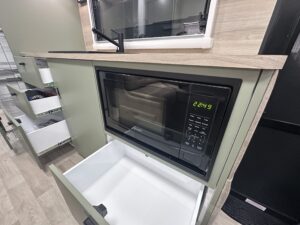

Microwave: 25l with mounting bracket
Hot Water System: 28l Gas/Electric HWS ; (Instantaneous HWS-Optional)
TV: 24” Smart TV
Stereo: CD/DVD with Bluetooth
Toilet: Ceramic Bowl Cassette Toilet
Washing Machine: 5kg Front Loading; (3.2kg Front or Top Loaders applicable on some models)
Fridge/Freezer: 12V Compressor Fridge; (180L 3-Way Absorption Fridge with Freezer – Optional)
Diesel Heater: One outlet fitted under Bed or Lounge

Electrical Details

10A Outlet: Black
15A Inlet: Black
Breakaway Controller: Trailsafe
Aerial: Black Flexible Rubber
Antenna: Winegard Sensar HV
Battery Management Charger System: Projecta Intelli-RV Gen II 30amp
Colour LCD Display: BMPro Trek Display
Batteries: 1 x 225A lithium battery
Solar Panels: 2 x 200W (Monocrystalline Solar Panels) on Roof; (Extra Panelsoptional)
Reading Lights (Black): White LED Light with USB-C port (2-Bedroom; 2-Lounge and 1 for each Bunk)
Power Points: Modern Black Acrylic
Anderson Plug-1: 50A Grey Anderson Plug on A-Frame for charging battery
Anderson Plug-2 : Road Side on chassis rail for Portable Solar Panel
Pin Plug: 12 Pin flat plug
Step Light: Blue strip lighting around step
Strip Lights (recessed): Under OHC in Bedroom, Kitchen, Seating and Ensuite Area
Tunnel Boot Lights: 2 x Tunnel Boot LED Lights
Tail Lights: LED Tail Lights
Markers: Red/Amber, Red, Clear
Licence Plate Light: LED Licence Plate Lamp (Black)
Bar Lights: 2 x Barlights (Front and Back)
Annex Lights: 3 x Anti Bug Lights on Annex Side
Downlights: 75mm LED (Silver housing)
Speakers (Internal): 2 x 6.5” White Ceiling Speakers
Speakers (External): 2 x 6.5” Black Outdoor Marine Speakers
Reverse Camera: Black Reversing Camera with LCD Display
Sway Control: Anti Sway Control System

Plumbing Details

External Tap: Tap on A-Frame with C/Plate protection
Fresh Water Tanks: 2 x 95L Fresh Water Tanks with Galsheet protection under chassis
Grey Water Tank: 1 x 95L Grey Water Tank with Galsheet protection under chassis
Pump: 12V Water Pump
3-Way Kitchen Tap: All in one Water filter with Mixer Tap to Kitchen Sink (Black)
Tapware: Kitchen and Bathroom (Black)
Sink (Kitchen): Black Granite Stone Kitchen sink with drain; (No Drain Sink-optional)

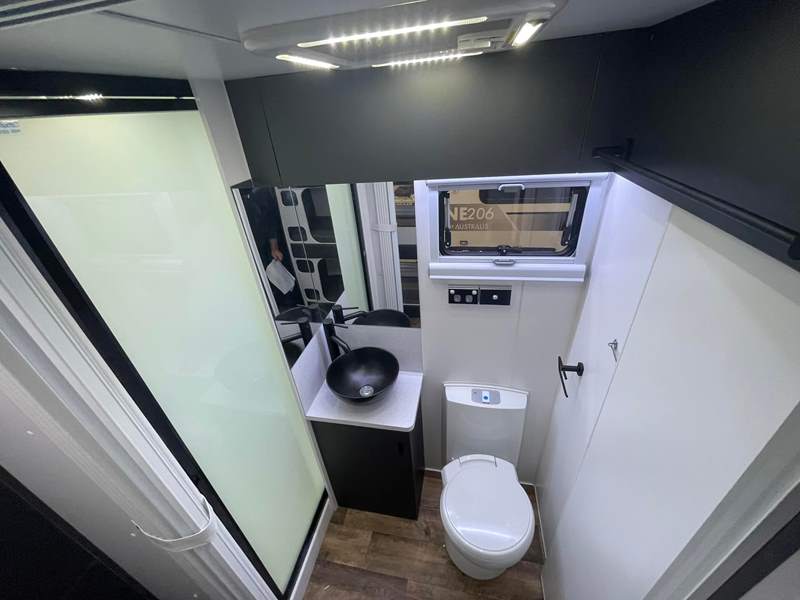

Basin (Ensuite): Black Round Ceramic Basin
Gas Bayonette: Located on Annex Side of the Van near the Tunnel Boot
External Shower: Hot/Cold (Water Marked)-Black
Diesel Heater Tank: 5L Stainless Steel Tank with C/Plate protection
Water Fillers: 2 x Lockable Water fillers on driver side
Fast Fill Connection: Fast Water Fill connection to Fresh Water Tanks
Gas Bottles: 2 x 9kg Gas bottles on A-Frame

External Details

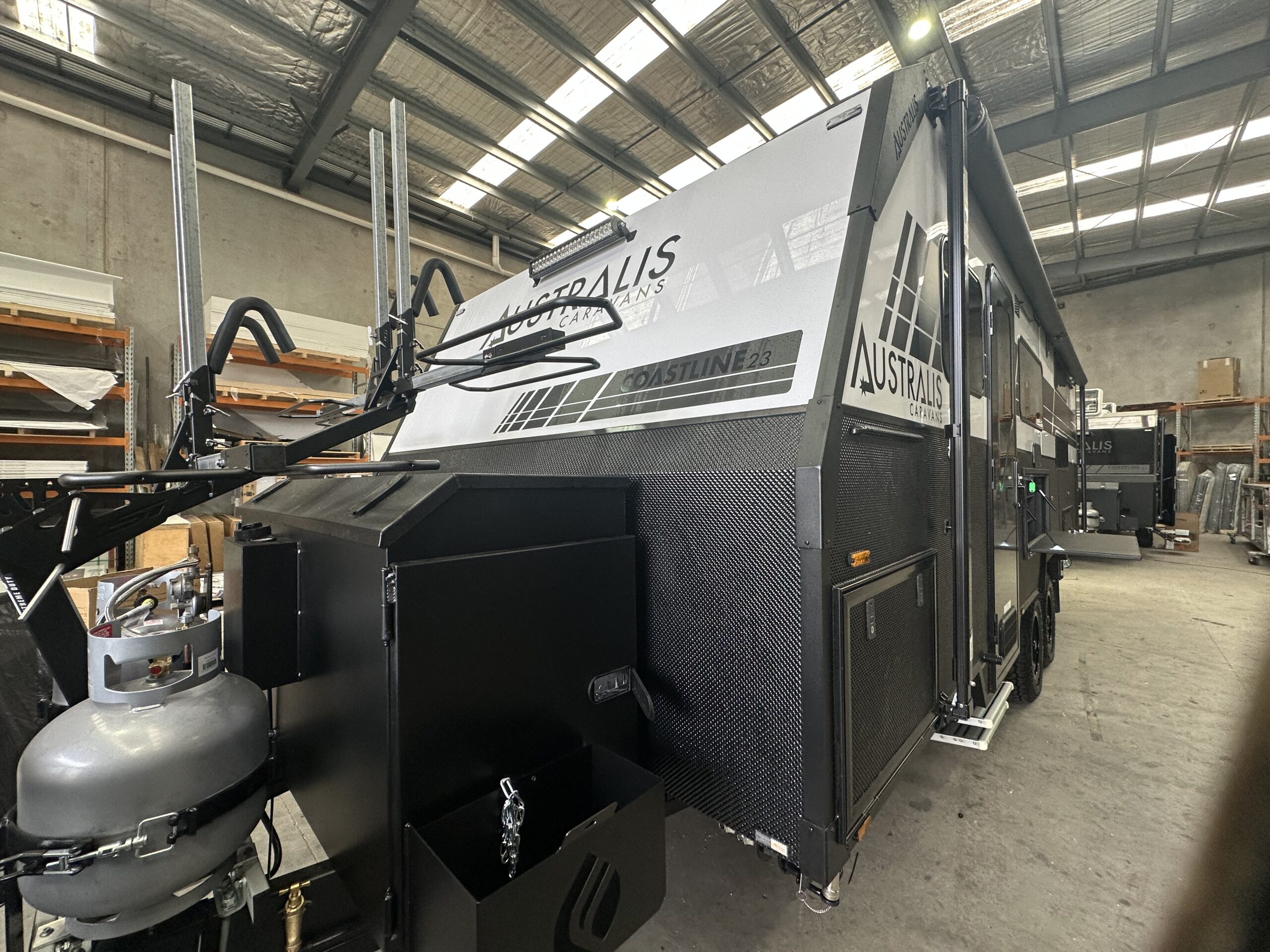

Toolbox: Black C/Plate Toolbox with Generator slide on Off Side
Jerry Cans: 2 x Jerry Cans (one on each side of Toolbox)
Awning: Roll out manual Awning (Charcoal)

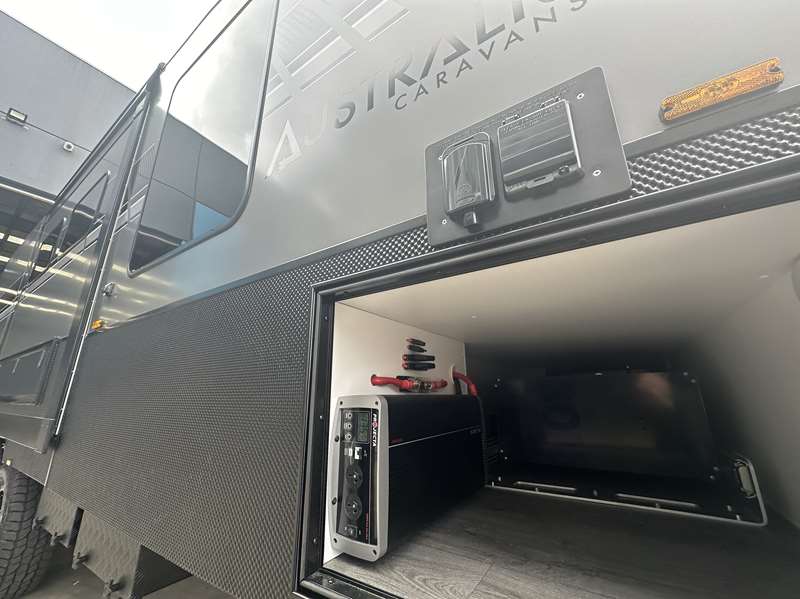

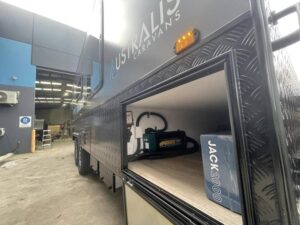

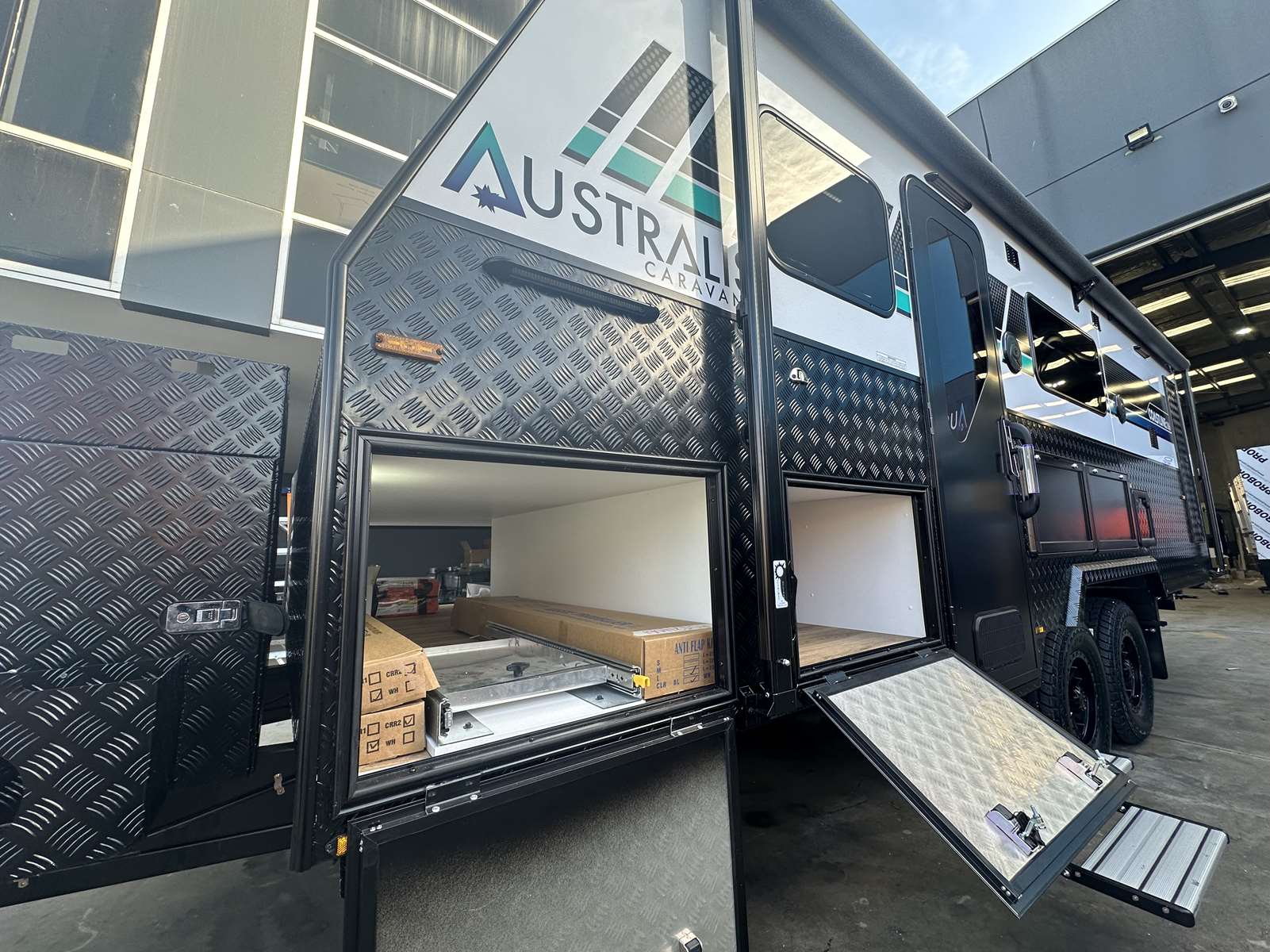

Tunnel Boot: Dual Access with large C/Plate Doors
TV Bracket: TV “V” Bracket (located near TV Pt)
Picnic Table: Black lockable Picnic Table
Step: Dual Pull-Out Step (Manual)
Step Well: Checker Plate
Wheel Spats: Checker Plate
Wheel Boxes: Galvanized
Wheels: 16” Alloy Wheels (Matt Black)
Spare Whee: 1 x 16” Alloy wheel on Rear Bumper (*Underslung at front on some models)
Tyres: 265/75 R16, A/T Tyres
Stone Guard: Stone Guard “D-Flector” on A-Frame
BBQ Slide: Slide-Out Weber Baby Q Slide in Tunnel Boot
Grab Handles: Front Grab Handles (Black)

Construction Details

Checker Plate Sides: H600mm
Checker Plate Front: H1000mm
Checker Plate Back: H600mm
Cladding Sides, Front and Back: Flat Aluminium Composite *No charge option of ribbed aluminium cladding
Roof: Fiberglass
Frame: Meranti
Insulation: Styrene (Walls and Roof)

Suspension Details

Tandem Axle Van Models: 3.5T Independent Heavy Duty Suspension with Shock Absorbers (Other Suspension options available)
Single Axle Van Models: 3T Independent Heavy Duty Suspension with Shock Absorbers Suspension standard (Other Suspension options available)
