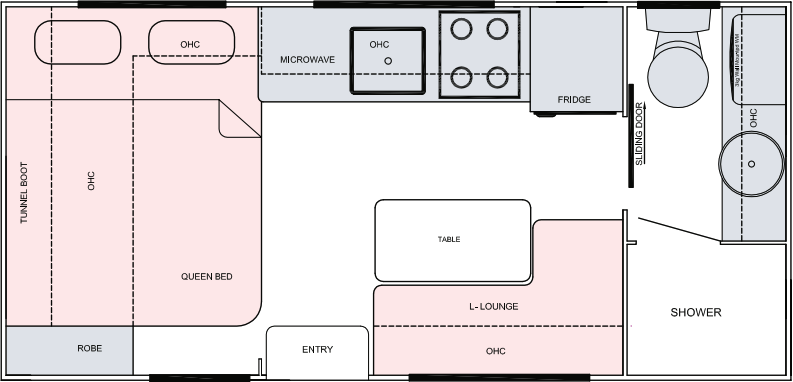

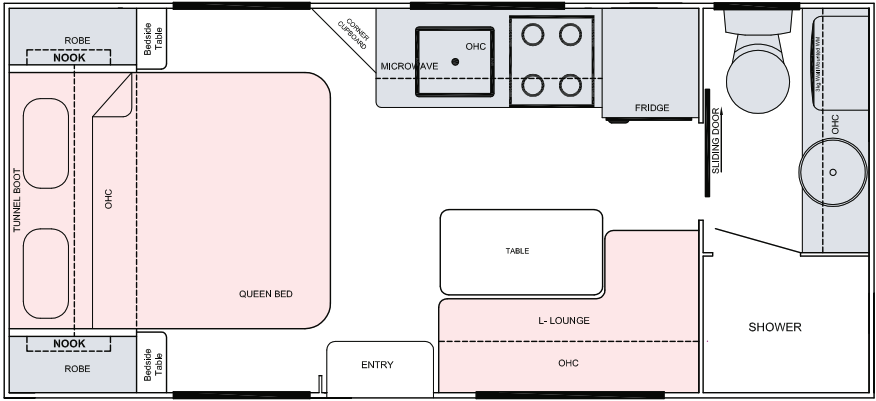

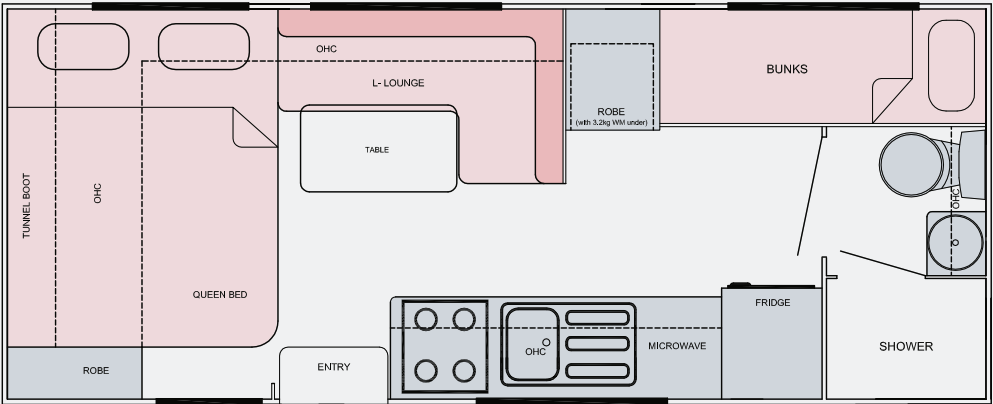

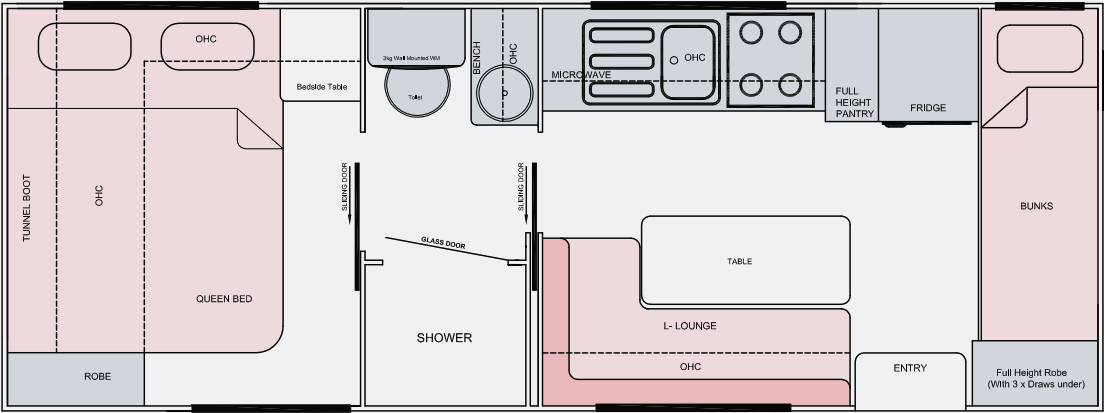

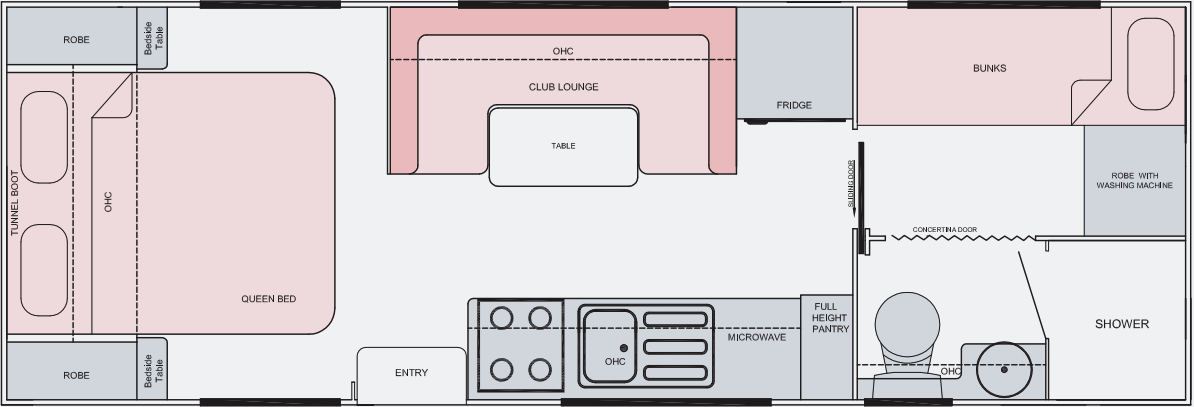

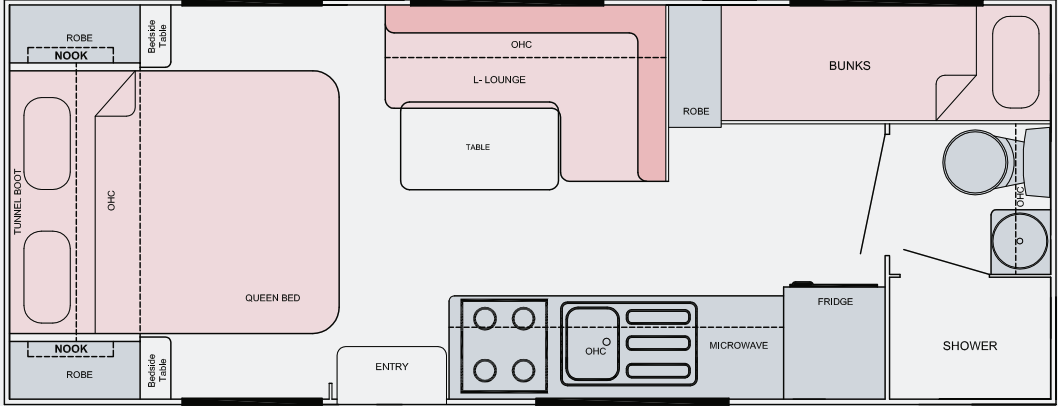

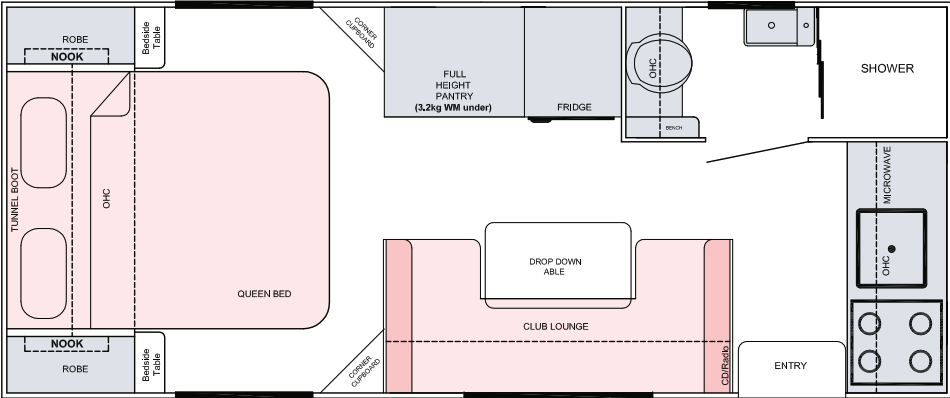

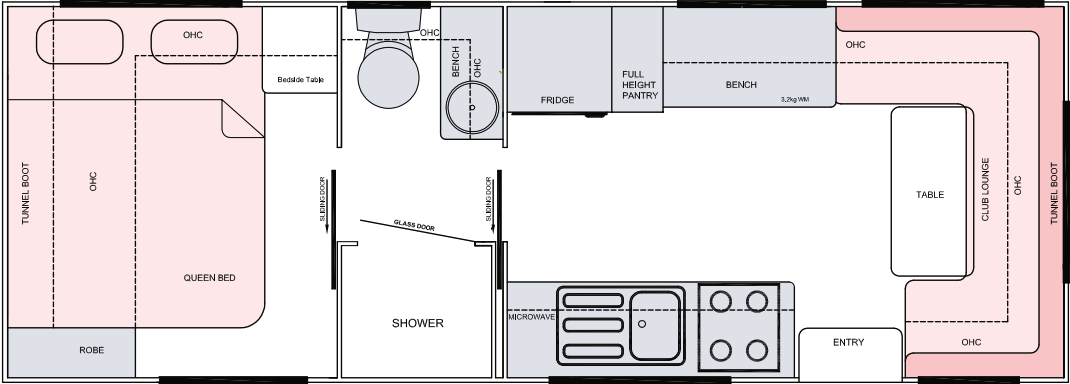

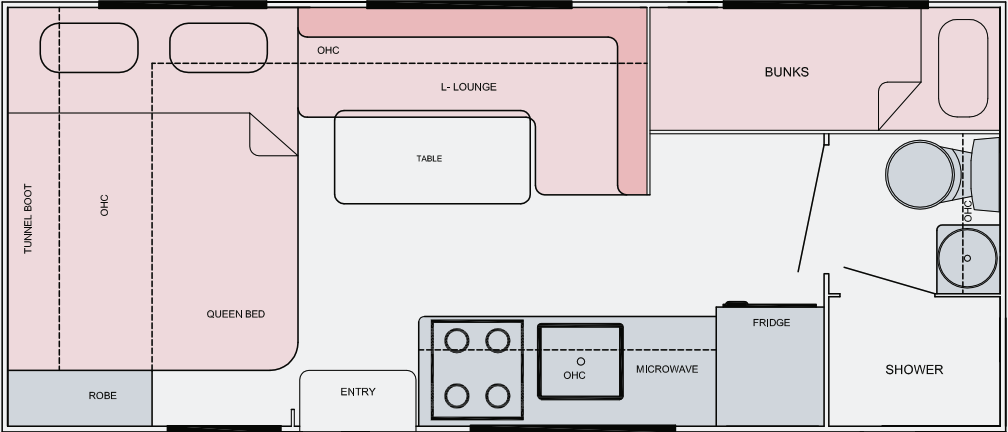

Floorplans

Couple Models
Couple Xt Models
Family Models
Family Xt Models

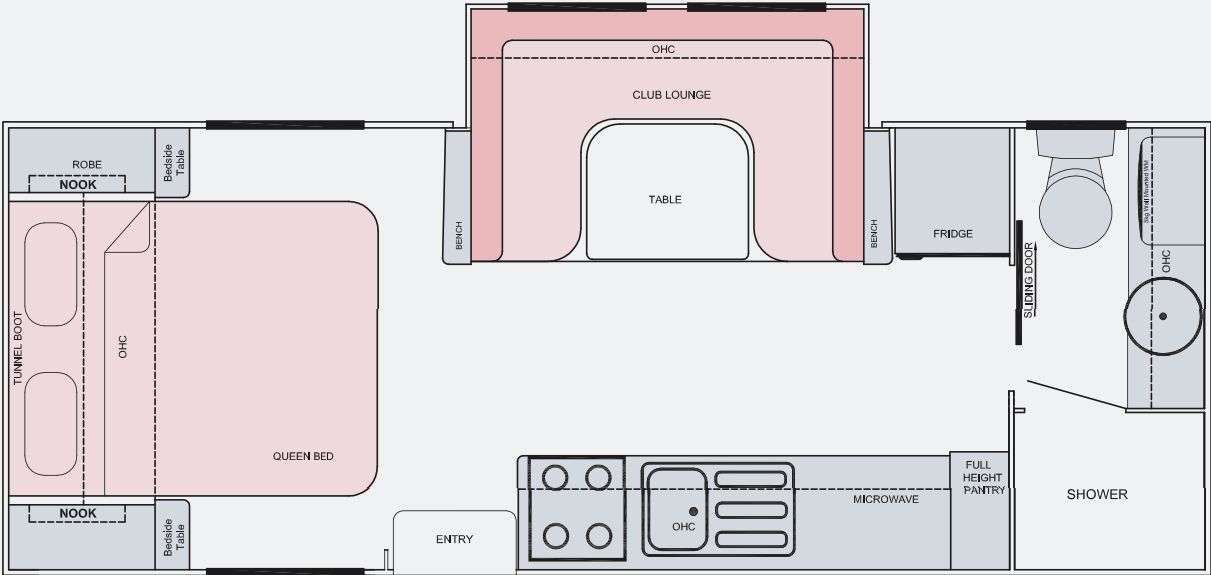

20ft MD

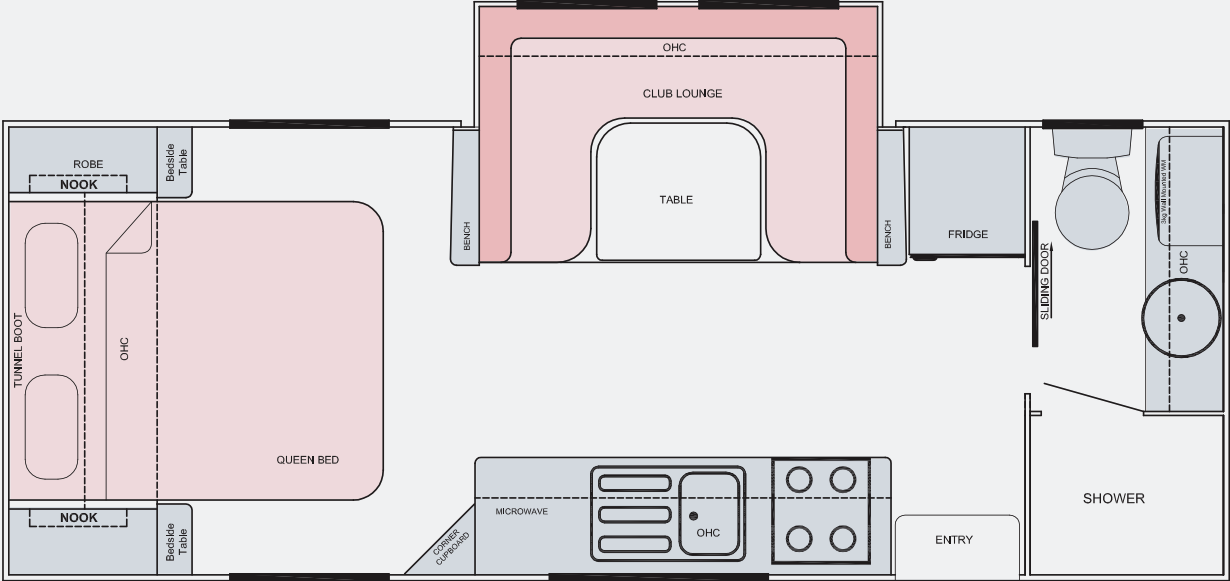

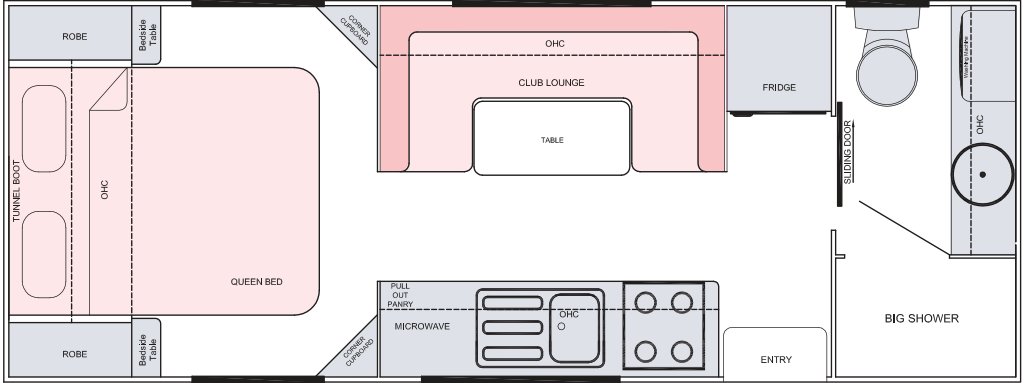

20ft RD

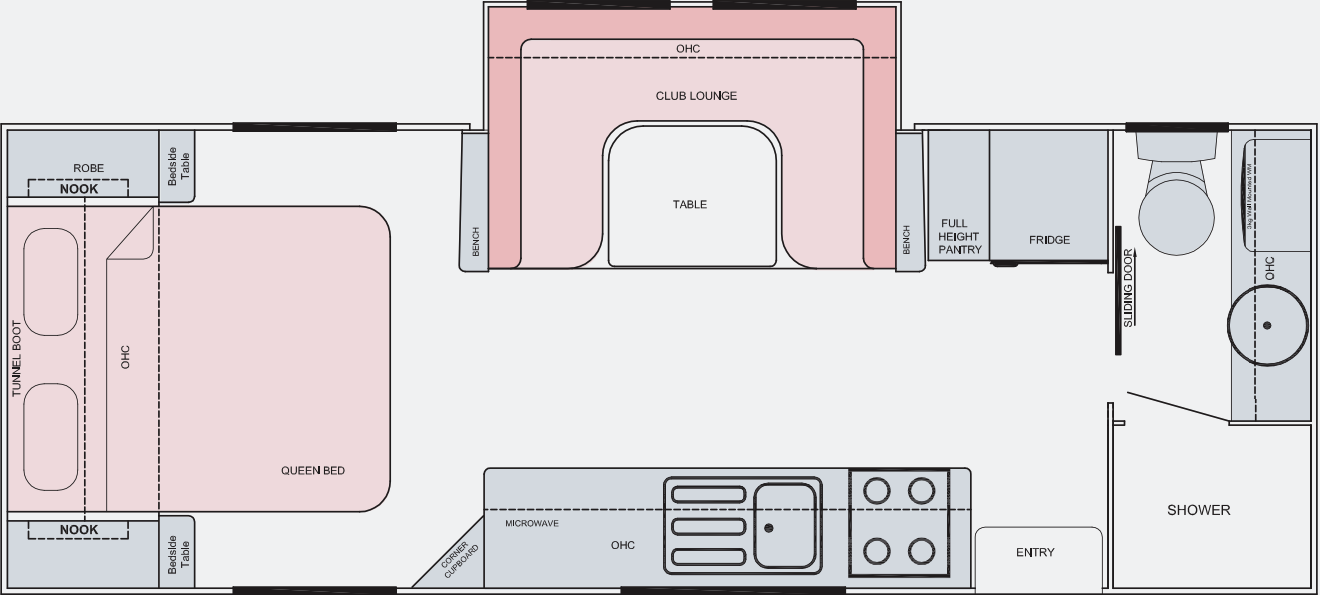

21ft RD

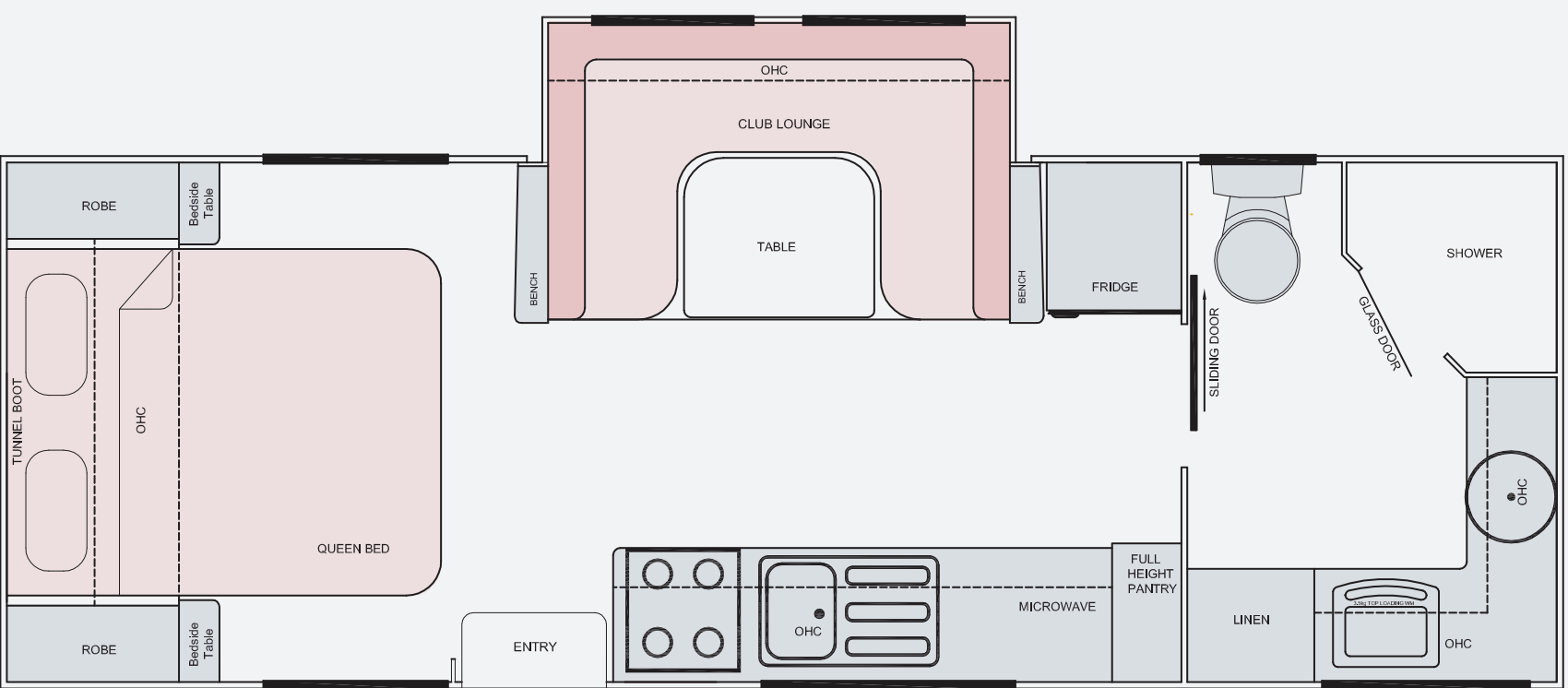

22ft MD

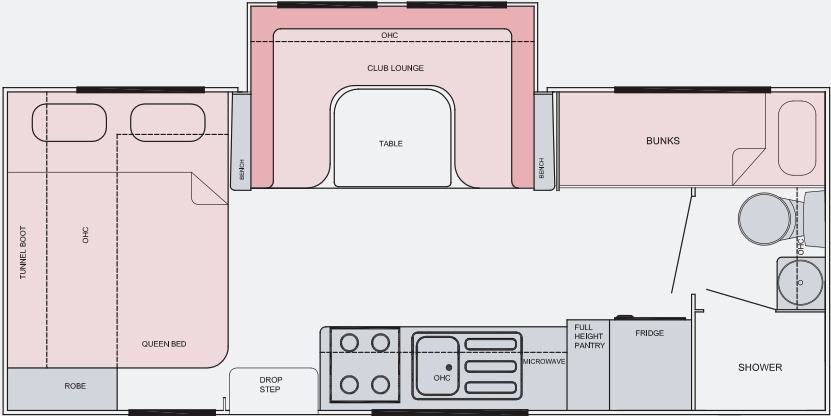

19ft XT

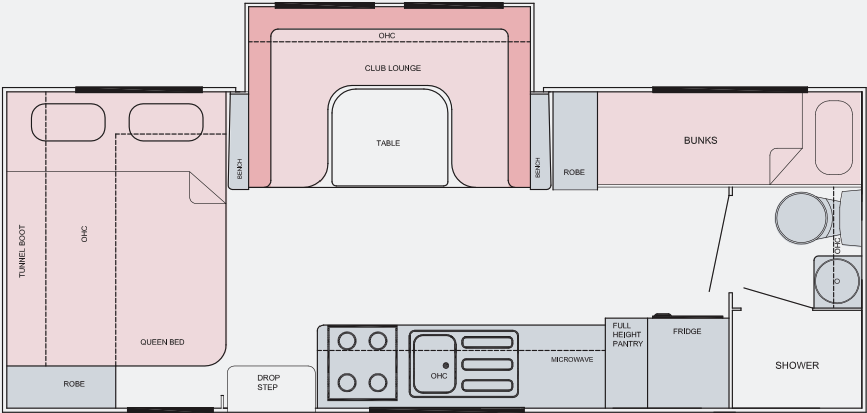

20ft XT

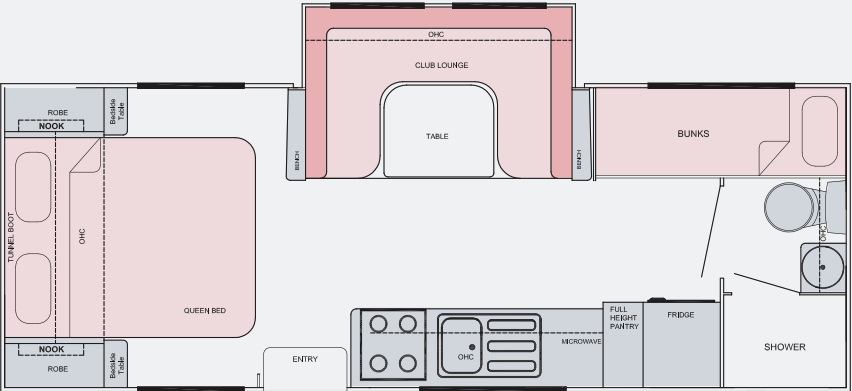

20’8ft XT

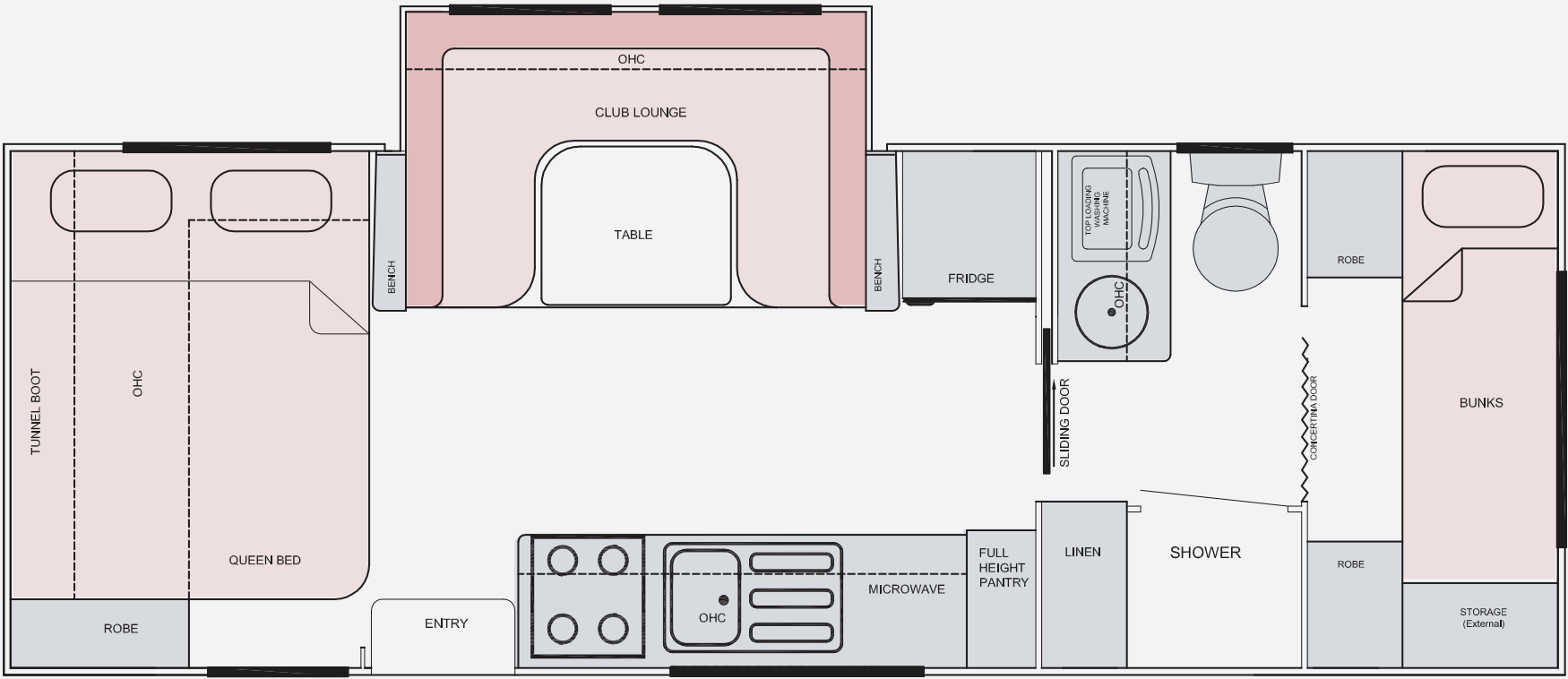

22ft XT

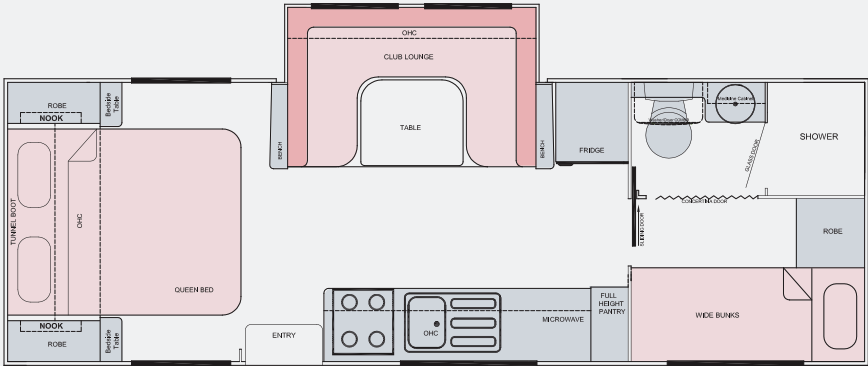

22’6ft XT

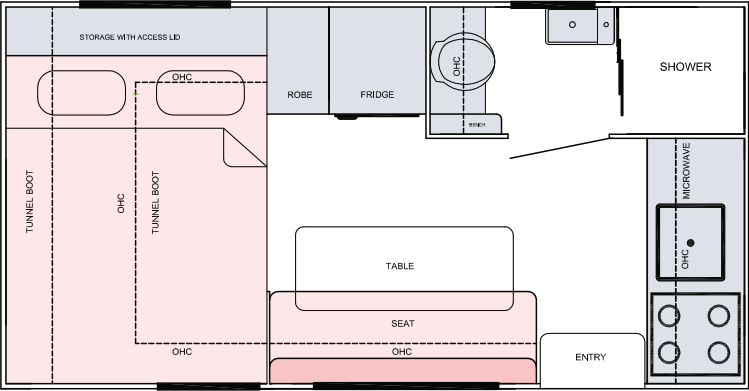

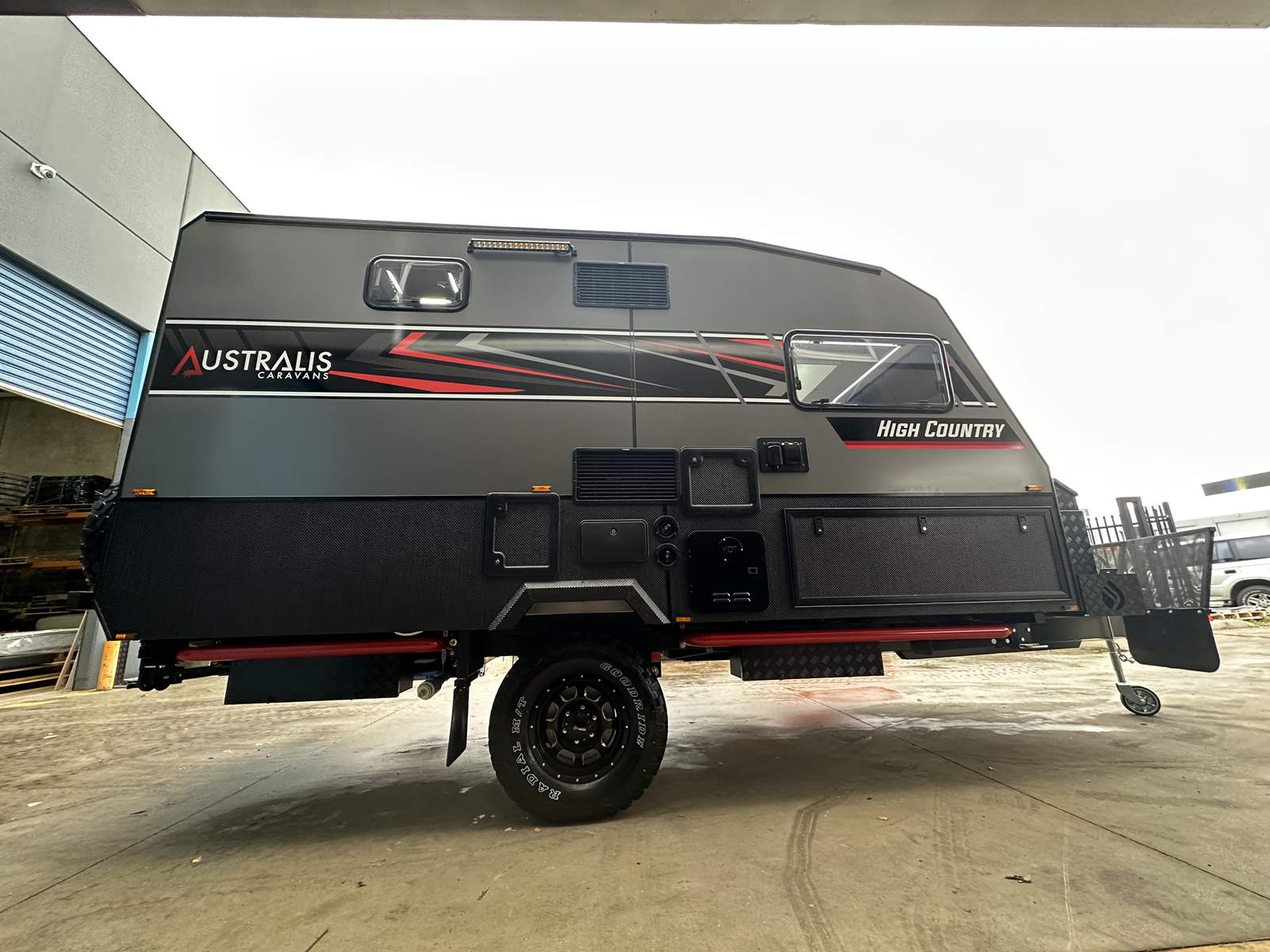

14’6ft Single Axle Model

20ft MD

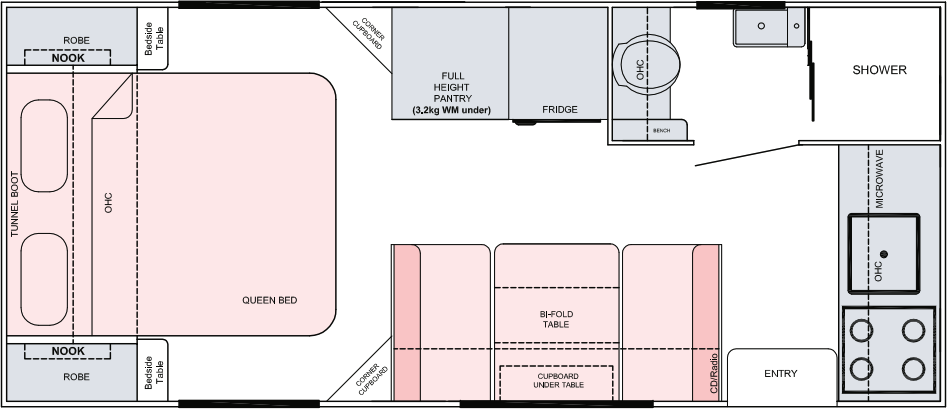

16’6ft Single Axle Model

19ft XT

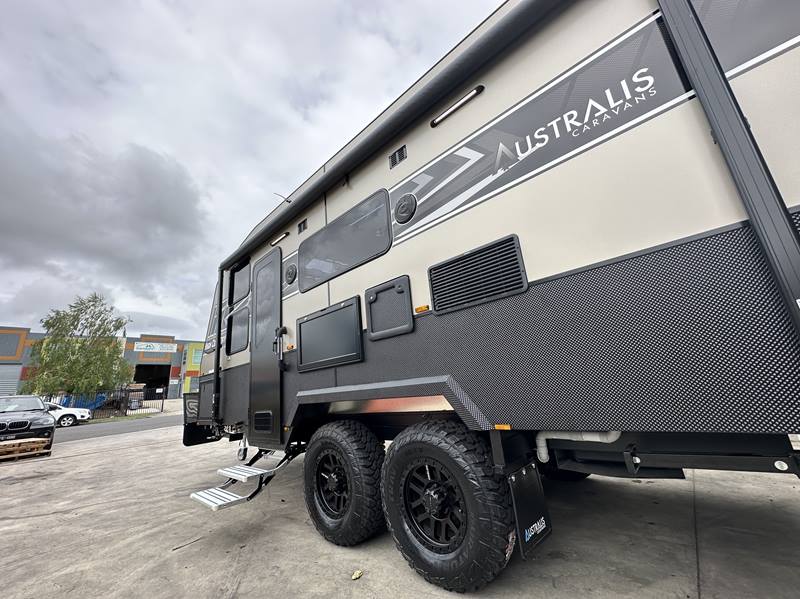

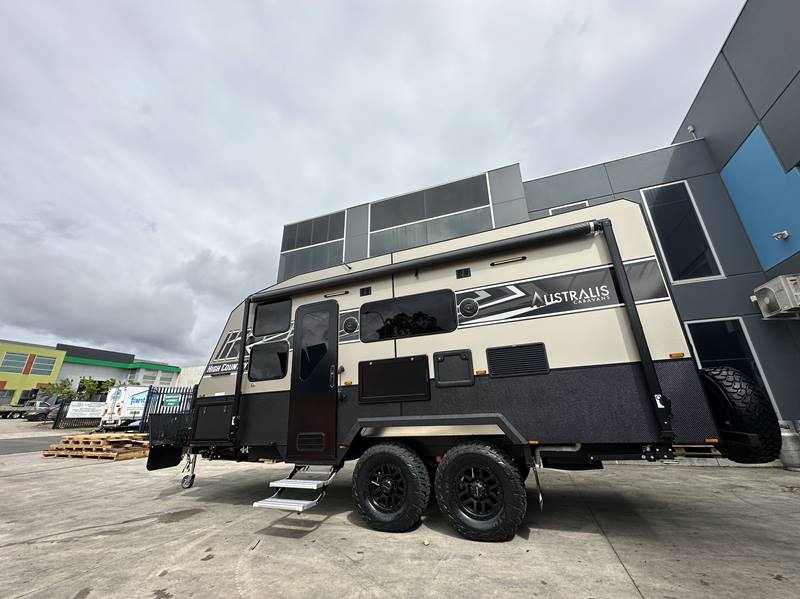

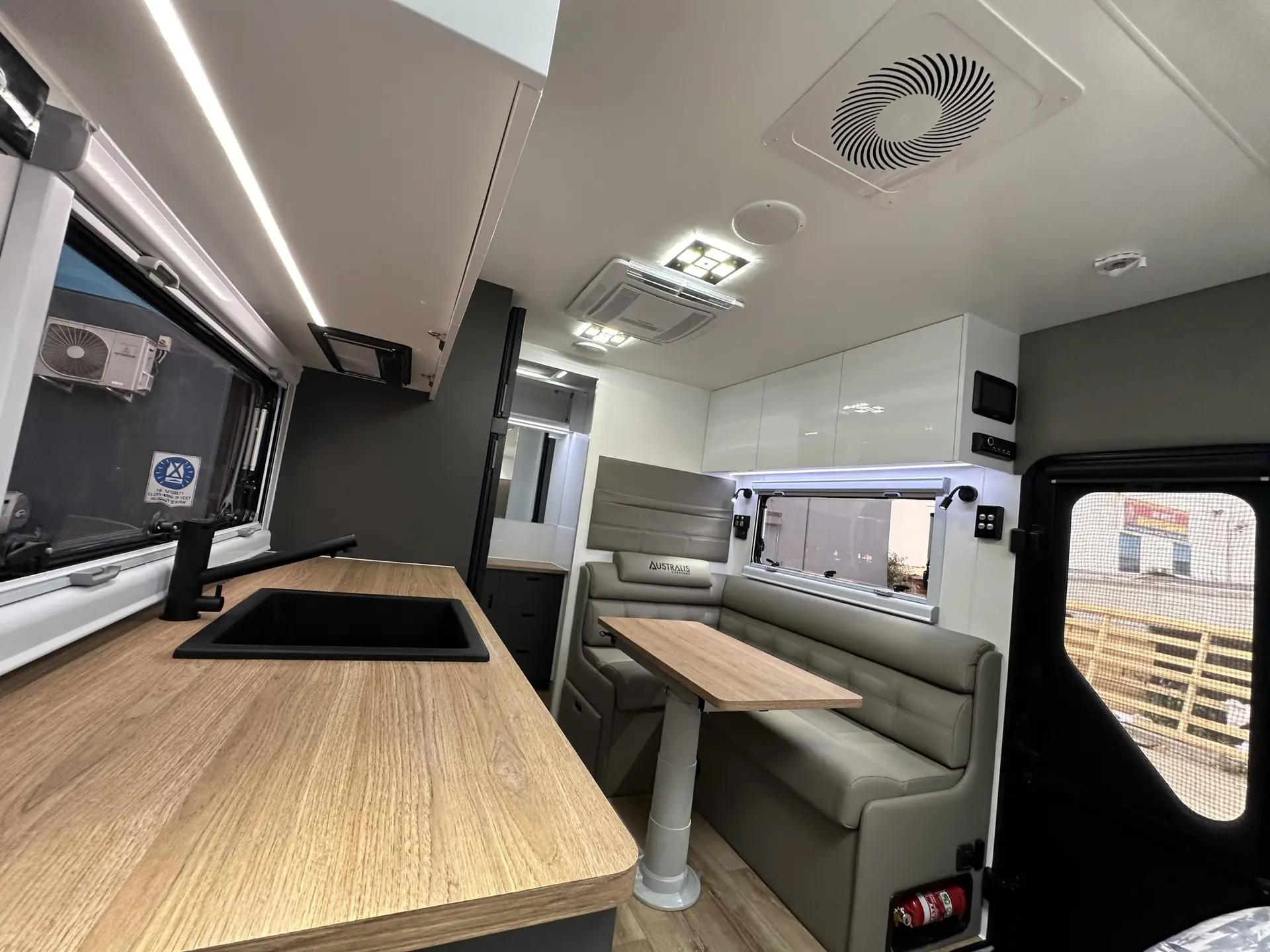

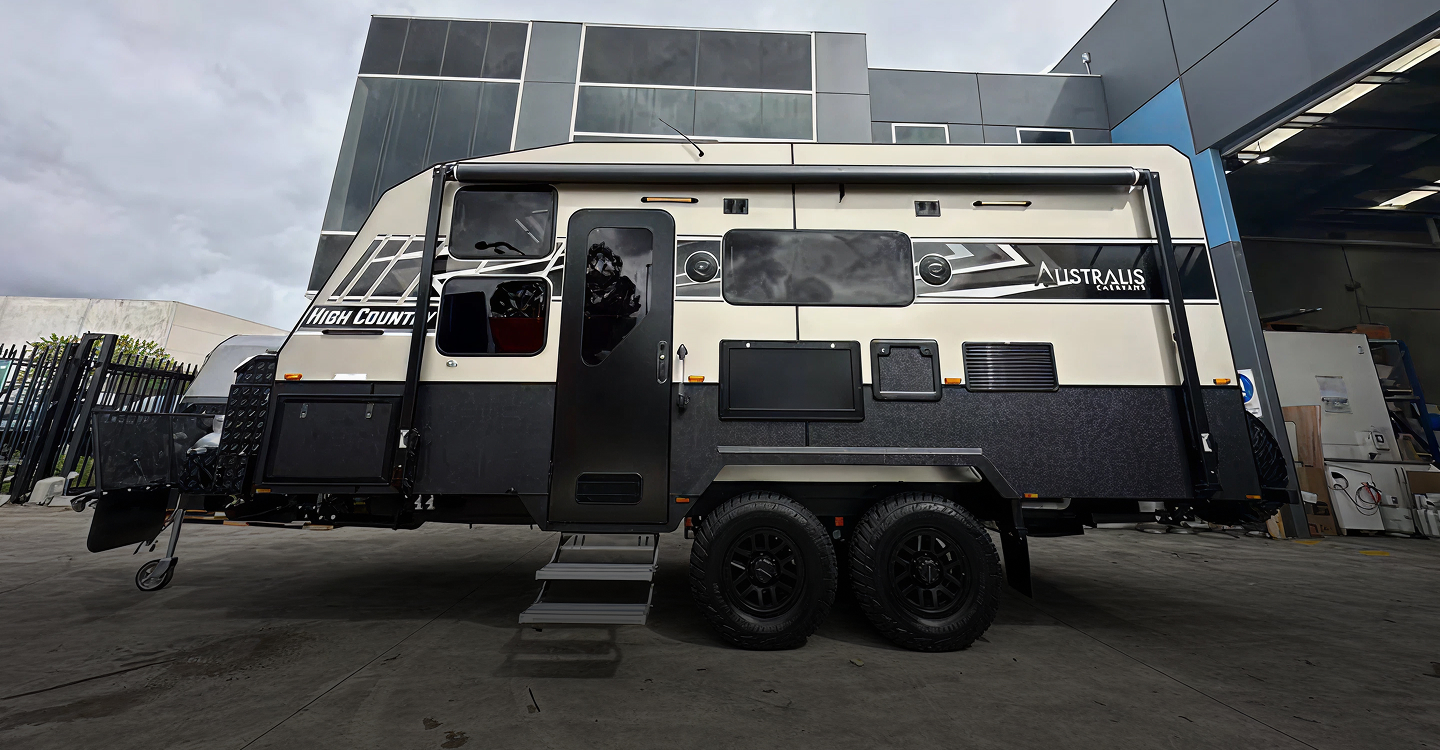

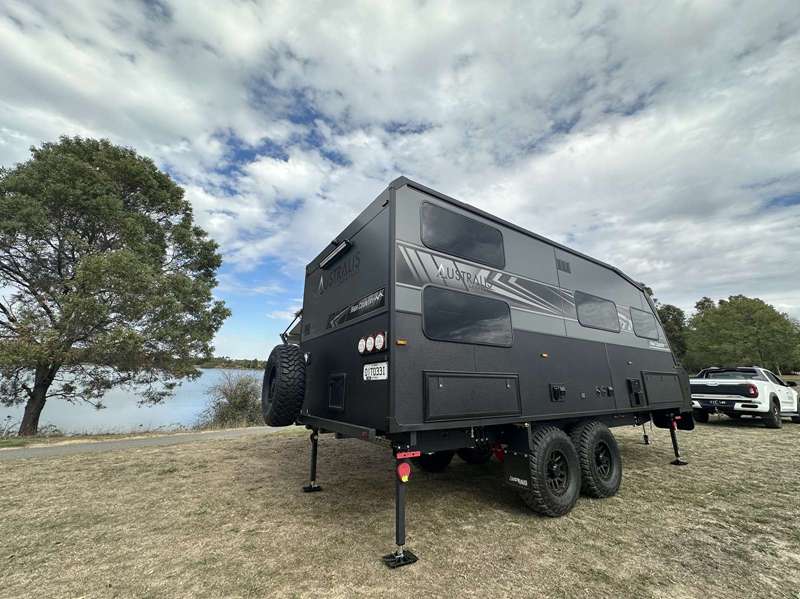

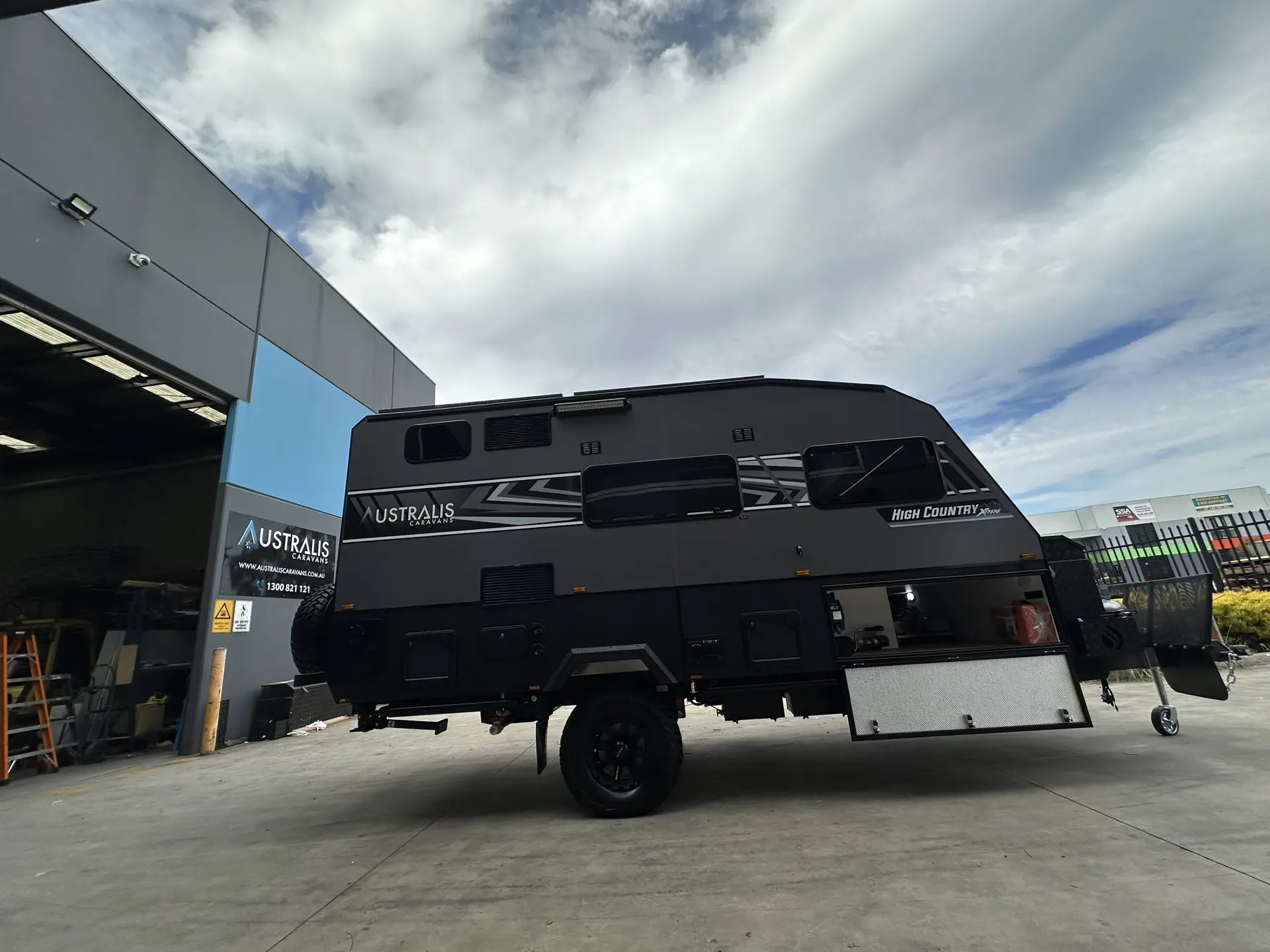

Australis High Country

The Australis High Country is the ideal companion for adventure seekers, offering the freedom to explore remote areas while still enjoying the comforts of home.

Whether you’re embarking on an off-the-grid camping trip, a backcountry expedition, or an exploration of uncharted territories; the Australis High Country is ready for your offroad adventures.

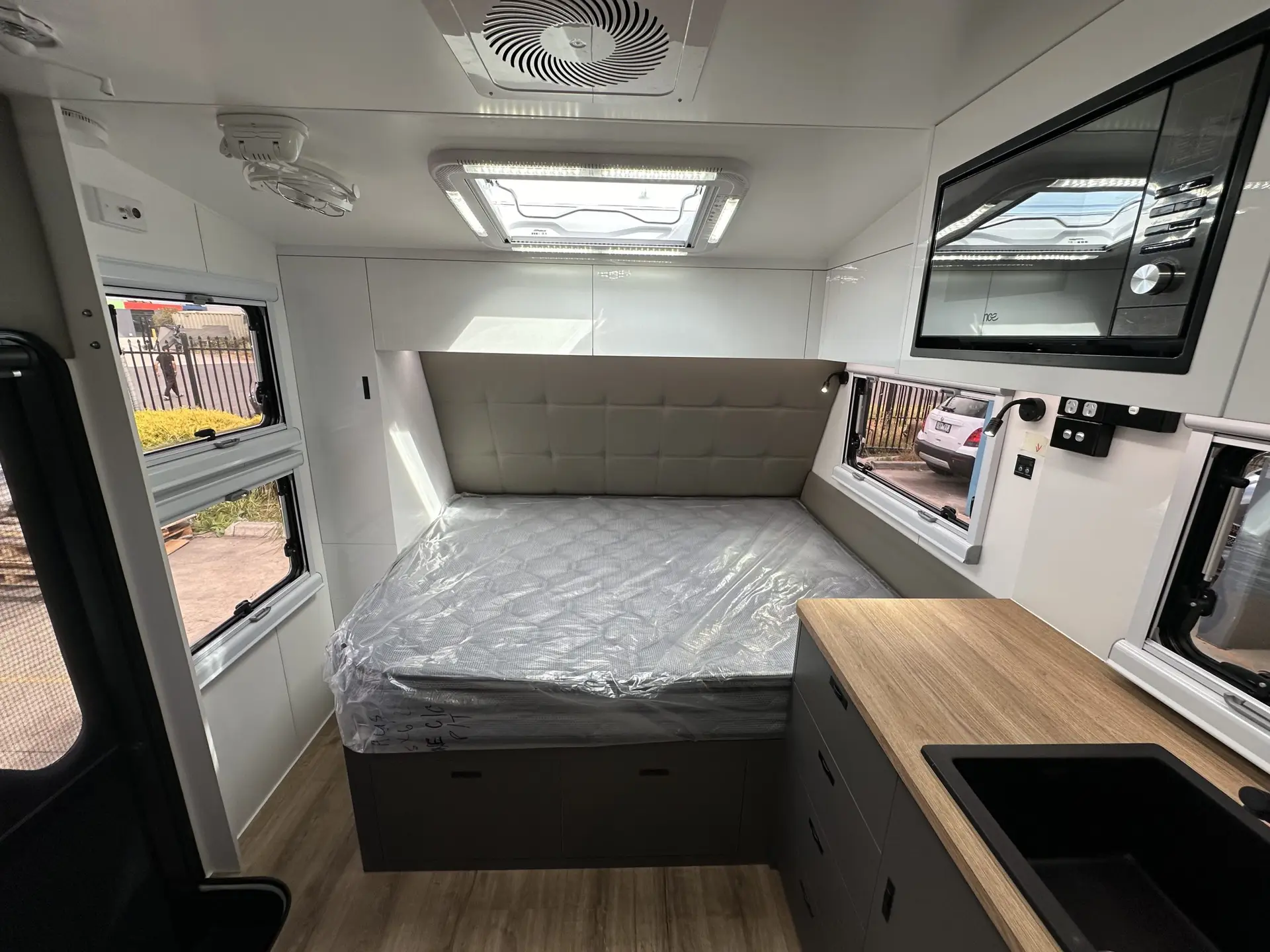

Next Generation Enhancments

Our innovative design combines rugged capability with spaciousness. Building on our strong foundation, the next-generation High Country introduces upgrades that serious offroad travellers will appreciate :

Raised X-Plate Protection – now H870mm for superior terrain defence
Dual 315A Lithium batteries – double the previous power capacity for extended adventures.
Premium Edge Capping – heavy-duty construction with engraved logo corners
3000W Inverter – home-like power supply for essential electronics.
Under body protection
Slide-out options available on select layouts
Instant Hot Water Service

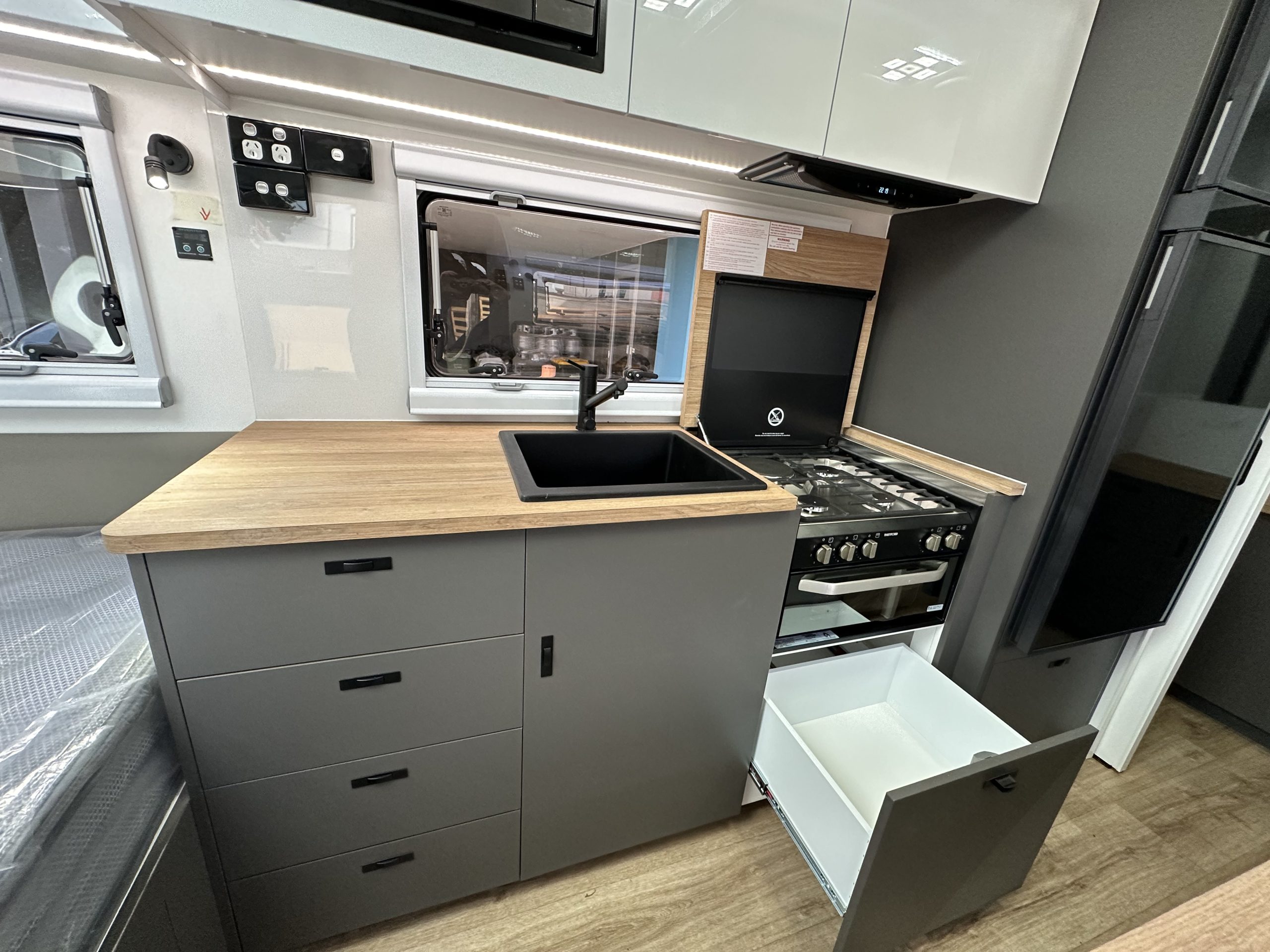

Australian Engineered & Built

Australis Caravans is driven to design and build innovative, modern caravans with the right combination of features, smart comfort and safety. Our foundation of over 30 years of industry experience combined with our master caravan builders has produced a range of caravans for exploring the great Australian coastline, overland and high country.

Features & Specifications

Inclusions – Standard

Aluminium Frame Walls: Entertainment Hatch
Fiberglass Sandwich Roof: 2 x 225A Lithium Batteries
Honeycomb light weight floor: Coloured Bed Base and Lounge/Fridge end panels
X-Plate Protection (Raised-H870): 285/75 Mud Tyres in lieu of all terrain tyres
GAC Plus 40 Toolbox with Anderson plug: New capping with laser-cut engravings
Sail Track in full length to Off Side: 3000W Projecta Inverter with Shunt
HTP 12V Cabin Pressure System: Bolt-on Furniture
Sirocco Fans: 3 x 200W Solar Panels
Projecta DC 2 DC Charger-30A: Forgatti Instant HWS Fast fill – Tank Isolation valve

Inclusions – Xtreme

Maxtrack Airbag Level 4 Suspension: 2 x Extra Bar Lights (Annex and Road Side)
Extra Spare Wheel (2 in total): Truss Chassis with laser-cut logo engravings
Monster Toolbox with Gas bottles in: Fusion Bluetooth external bar speaker
Electric Awning: Enerdrive ESYS-N-SI01 board (Incl. 40A DC2DC; Inverter 3000W/100A AC charger; 40A Solar regulator
Enerdrive Simarine Display: C/Plate protection on all plumbing under chassis
Enviro Hot Water Saving system: Fusion Sound System
4 x 200W Solar Panels: 2 x 315A Lithium batteries

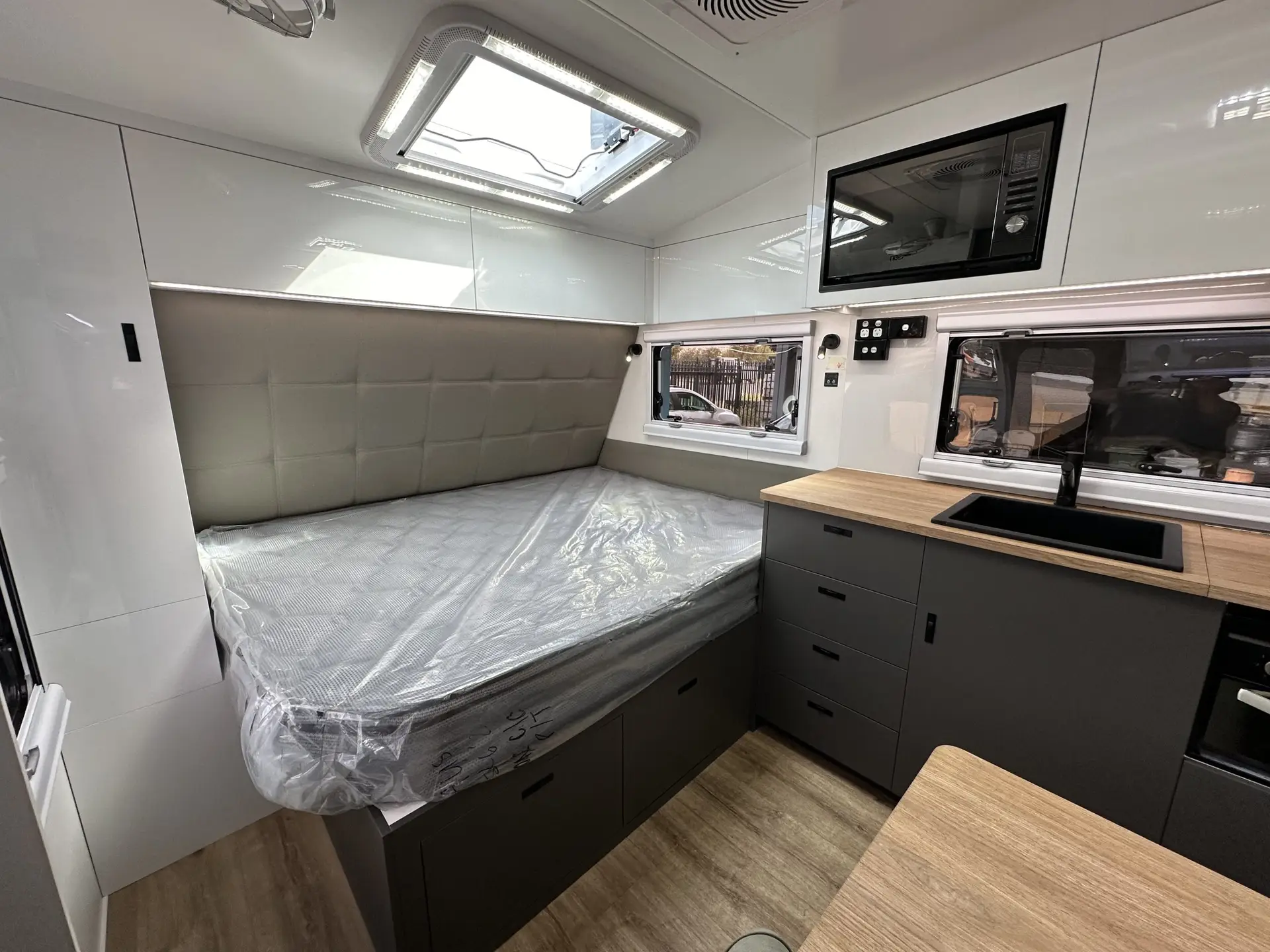

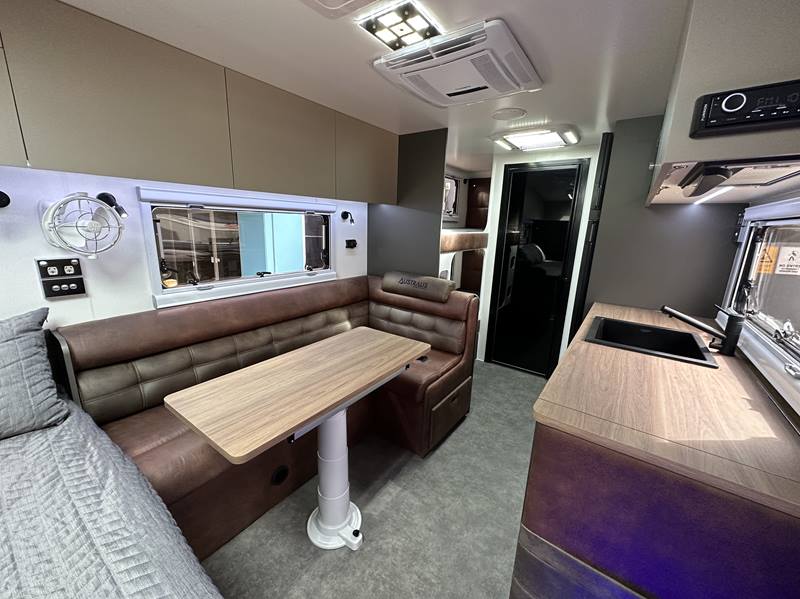

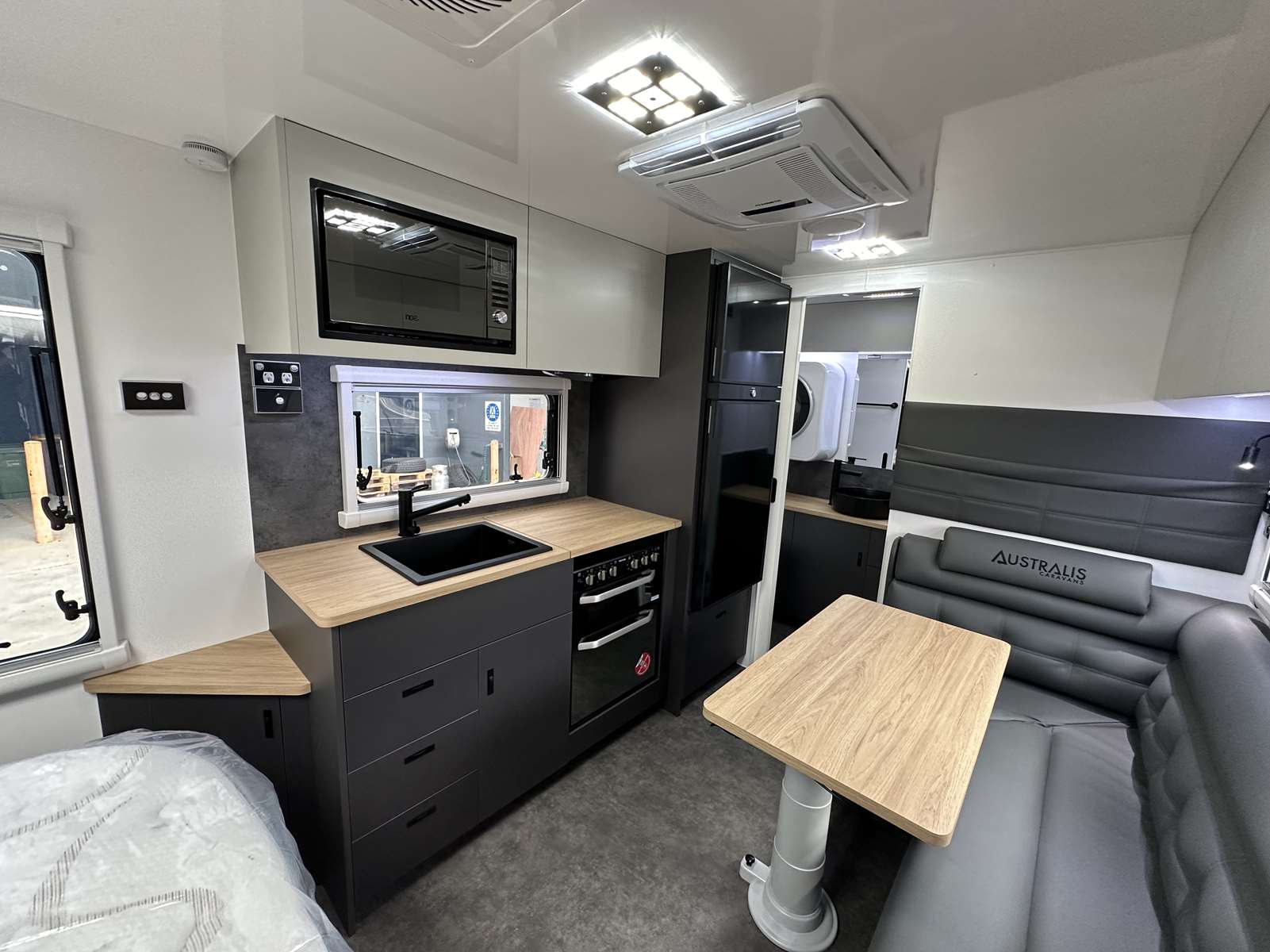

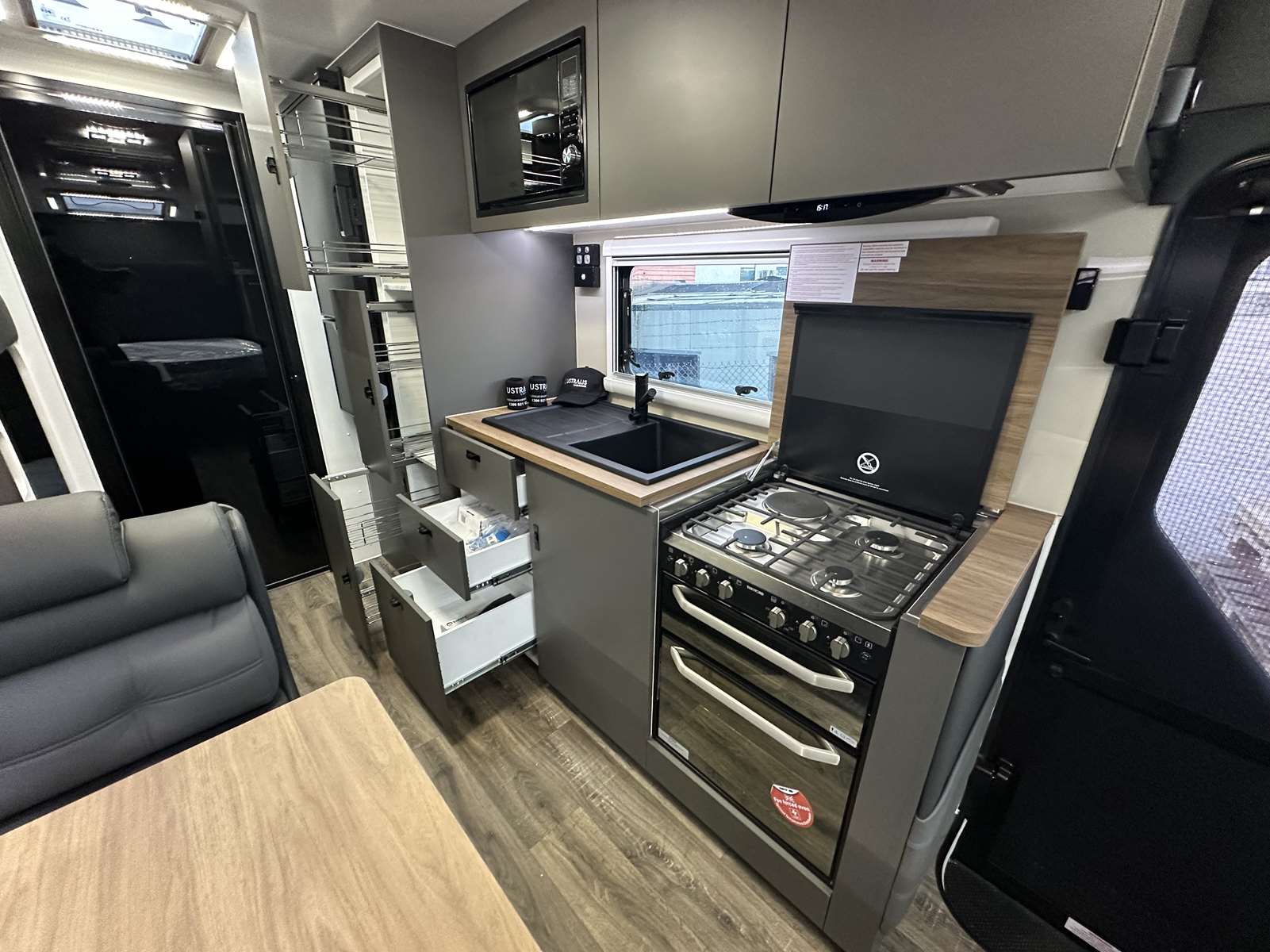

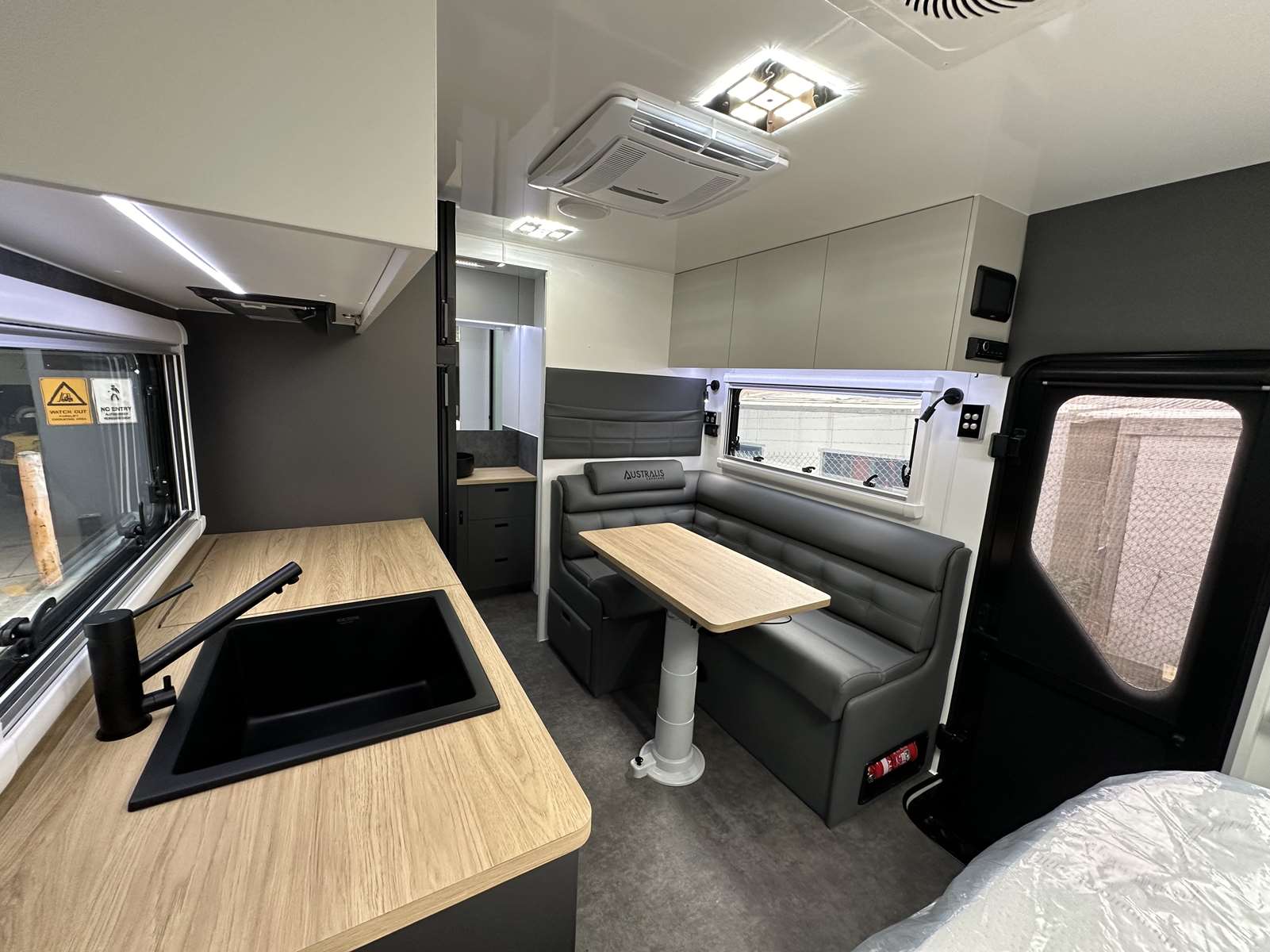

Internal Details

Bed: Gas Lift Island bed or East/West fixed bed*
Mattress: Innerspring Pillow Top
L-Shape, Café Dinette or Club Lounge seating : Faux Leather with Exposed Stitching Upholstery and Embroidery on Headrest
TIC Infill Cushion: Optional
Table: Drop down with telescopic leg (L-Shape and Club Lounge) or Bi-Fold (Café Dinette)
Windows: Flat, Tinted with Built-In Blind
Entry Door: Dust Proof with Crim Proof Mesh Screen (Tri-Lock)
Drawers: Soft Close with lock handles
Flooring: Vinyl
Floor: One piece lightweight Honeycomb
12V LED Roof Hatch: 700mm x 500mm
12V LED Roof Hatch: 450mm x 400mm
12V LED Power Hatches (x2) : 320mm x 320mm (Toilet and Shower area)
Benchtops: Square Edge Laminate
Benchtop over Stove: Square Edge Laminate
Furniture: Flat pack contemporary style CNC Cut furniture
Cupboard Handles (OHC): Hidden Catches
Cupboard Handles (Lower cupboards): Flush mounted lock catches (Matt Black)
Hinges: Concealed Hinges
Cupboard door struts: Gas Strut (60N)
Cupboard doors finish: Matt or Gloss
Splashback: Laminate; (Acrylic optional)
Ensuite Door: Black Glass Door or Sliding door with travel lock
Shower Door: Black frame with black glass; (Mirrored or Frosted glass – optional)
Upholstery: Faux Leather with exposed stitching; (Genuine leather – optional)
TV Bracket: 1 x Arm removable (Bedroom or Kitchen)
Smoke Detector : 9V Photoelectric with hush button (battery operated)
Fire extinguisher: 1kg in white or black housing
Towel and Toilet roll holder: Black

Appliance Details

Air Conditioner: Reverse cycle, low noise, slim-lined rooftop A/C
Dust Extractor: HTP 12V Cabin Pressure System (ARL)
Recessed Oven: Fan Forced Full Oven ; (Mini Grill with Pot drawer under-optional)
Rangehood : Recessed with touch screen
Microwave: 25L with mounting bracket
Hot Water System: Instant HWS
TV: 24” Smart TV
Stereo: CD/DVD with Bluetooth
Toilet: Ceramic Bowl Cassette Toilet or Bench Cassette Toilet*
Washing Machine: 3.2kg Top/Front Loading or 3kg Wall Mounted*)
Fridge/Freezer: 180L 3-way Absorption or Compressor Fridge
Fans: Caframo Sirocco 12V Fans
Diesel Heater: One outlet fitted under Bed or Lounge

Electrical Details

10A Outlet: Black
15A Inlet: Black
Breakaway Controller: Trailsafe
Aerial: Black Flexible Rubber
Antenna: Winegard Sensar HV or 360 AIR
Battery Management Charger System : Projecta Intelli-RVGen II 30AMP
Display: 7” LCD Colour Touch Display
DC to DC: DC to DC Charger
Batteries: 2 x 225A Lithium Batteries
Inverter: 3000W Inverter
Solar Panels: 3 x 200W (Monocrystalline Solar Panels) on Roof; (*Extra Panelsoptional)
Reading Lights: White LED Light with USB-C port (Black) (2-Bedroom and 2-Lounge)
Power Points: Modern Black Acrylic
Anderson Plug-1: 50A Grey Anderson Plug on A-Frame for charging battery
Anderson Plug-2 : Road Side on chassis rail for Portable Solar Panel
Pin Plug: 12 Pin flat plug
Entry Handle: LED Grab Handle
Step Light: Blue strip lighting around step
Strip Lights (recessed): Under OHC in Bedroom, Kitchen, Seating and Ensuite Area
Tunnel Boot Lights: 2 x Tunnel Boot LED Lights
Tail Lights: Screw-On Tail Lights
Markers: Red/Amber, Red, Clear
Licence Plate Light: LED Licence Plate Lamp (Black)
Bar Lights: 2 x 31” Bar Light (Front, Back)
Annex Lights: 3 x Anti Bug Lights on Annex Side
Downlights: Square touch EURO Light with dimming option
Speakers (Internal): 2 x 6.5” White Ceiling Speakers
Speakers (External): 2 x 6.5” Black Outdoor Marine Speakers
Reverse Camera: Black Reversing Camera with LCD Display
Sway Control : Anti Sway Control System

Plumbing Details

External Tap : Tap on A-Frame with C/Plate protection
Fresh Water Tanks: 2 x 95L Fresh Water Tanks with Galsheet protection under chassis
Grey Water Tank: 1 x 95L Grey Water Tank with Galsheet protection under chassis
Pump: 12V Water Pump
3-Way Kitchen Tap: All in one Water filter with Mixer Tap to Kitchen Sink (Black)
Tapware: Kitchen and Bathroom (Black)
Sink (Kitchen): Black Granite Stone Kitchen sink with drain; (No Drain Sink-optional)
Basin (Ensuite): Black Round Ceramic Basin
Gas Bayonette: Located on Annex Side of the Van near the Tunnel Boot
External Shower: Hot/Cold (Water Marked)-Black
Diesel Heater Tank: 5L Stainless-steel Diesel Tank with C/Plate protection
Water Fillers: 2 x Lockable Water fillers on driver side
Fast Fill Connection: Fast Water Fill connection to Fresh Water Tanks
Gas Bottles: 2 x 9kg Gas bottles on A-Frame

External Details

Toolbox: Black C/Plate Toolbox with Generator slide (Off Side), 40L Fridge slide (Annex Side) and storage on the top
Jerry Cans: 2 x Jerry Cans (one on each side of Toolbox)
Awning: Roll-Out Awning
Sail Track: Sail track in full length on road side of the van
Tunnel Boot: Dual Access with large X/Plate Doors
Entertainment Box: With TV “V” Bracket, 240V/12V pts in
Picnic Table: Black lockable Picnic Table
Step: Dual Pull-Out Step (Manual)
Step Well: X-Plate
Wheel Spats: X-Plate
Wheel Boxes: Galvanized
Wheels: 16” Alloy Wheels (Matt Black)
Spare Wheel: 1 x 16” Alloy wheel on Rear Bumper (*Underslung at front on some models)
Tyres: 285/75 R16, Mud Tyres
Stone Guard: Stone Guard “D-Flector” on A-Frame
Slide-Out BBQ Tray: Slide out tray for WEBER Baby Q (Tunnel Boot)
Grab Handles: Front Grab Handles (Black)

Construction Details

X- Plate Front: H870mm
X- Plate Back: H870mm
X- Plate Sides: H870mm
Cladding Sides, Front and Back: Flat Aluminium Composite
Roof: One piece sandwich panel fully insulated Fiberglass roof
Frame: Aluminium
Insulation: Styrene (Walls)

Chassis Details

Hitch: DO35 Heavy Duty
Deck: 4” Chassis (Deck) with 4” Raiser
A-Frame: 6”
Jockey Wheel: 8”
Brakes: 12” Drum Brakes
Bumper Bar: 4-Armed Bumper Bar
Jack Corner: Supports 4
Jack : Kojack (Bottle Jack)
Mudflaps: Mudflaps with “Australis” logo

Suspension Details

Tandem Axle Van Models: 3.5T Independent Heavy Duty Suspension with Dual Shock Absorbers
Single Axle Van Models: 3T Independent Heavy Duty Suspension with Dual Shock Absorbers
